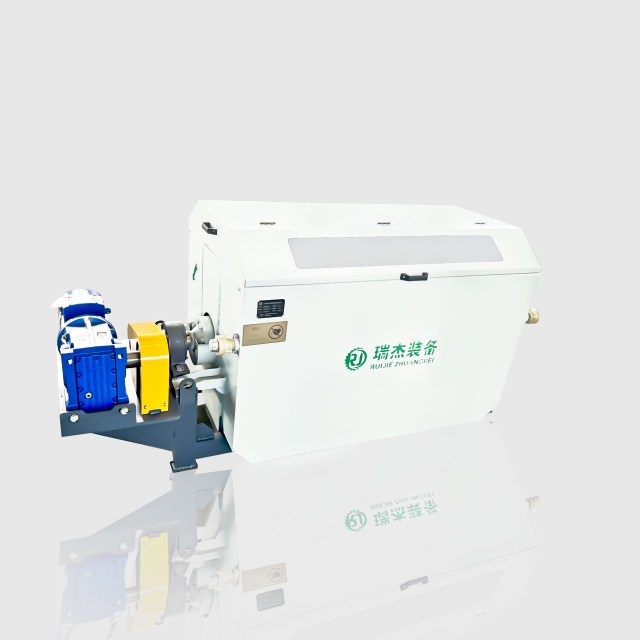

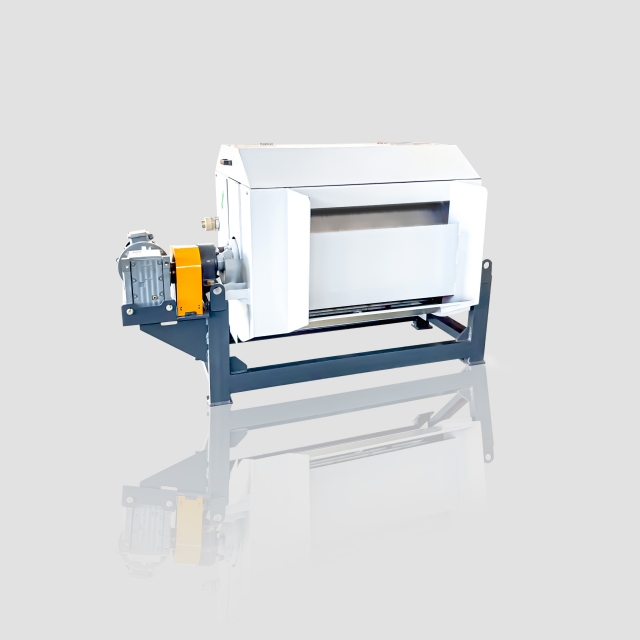

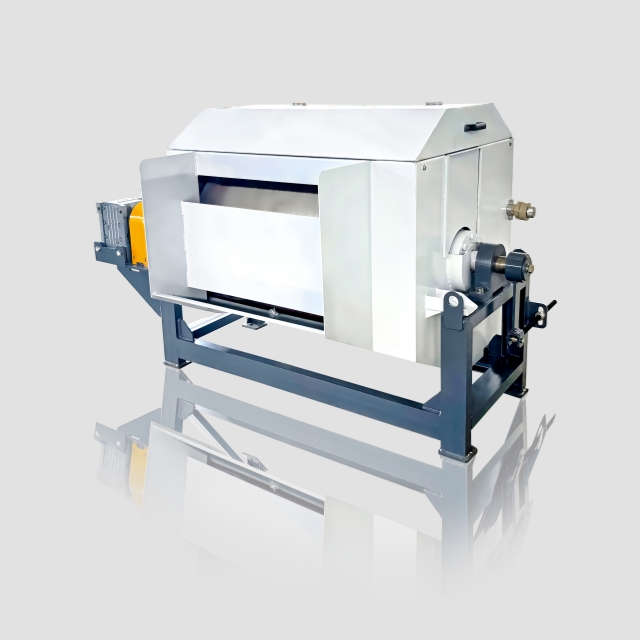

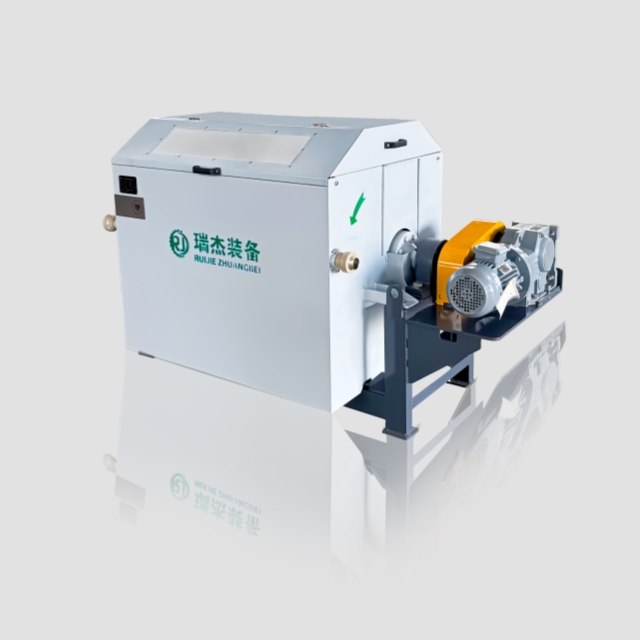

Better Understanding of Ruijie Up-suction Magnetic Separators

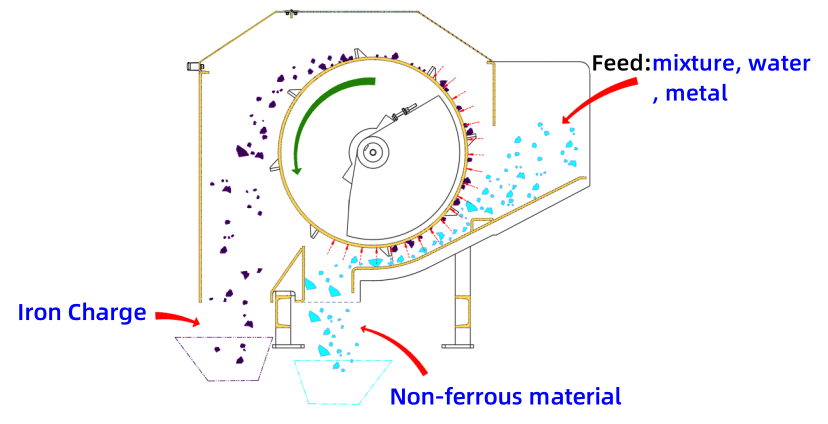

The high sorting purity up-suction magnetic separators for iron separation are suitable for wet-type production line. It can extract accurately the iron materials from the mixed materials automatically, with strong adaptability and delivers stable, reliable performance, ensuring consistent operation across diverse working conditions.
About Structure Design

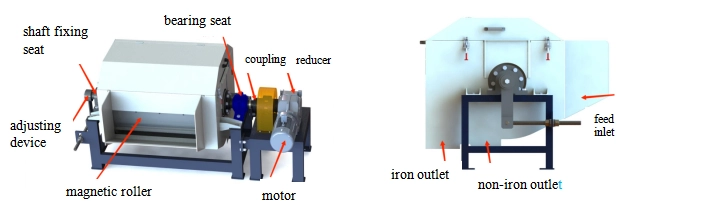

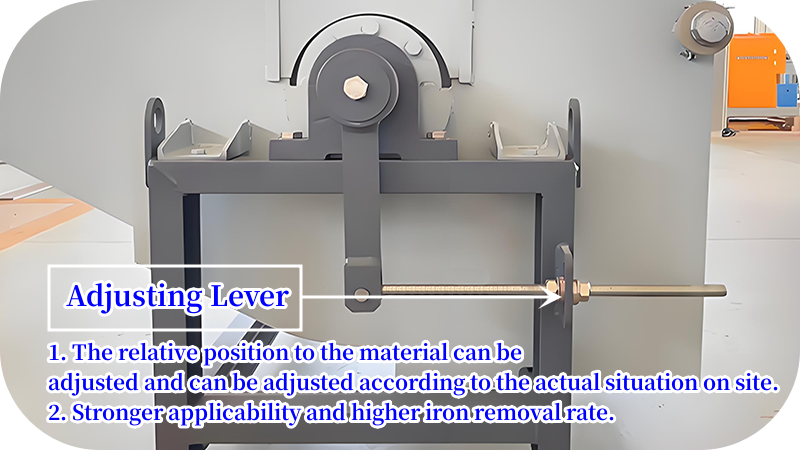

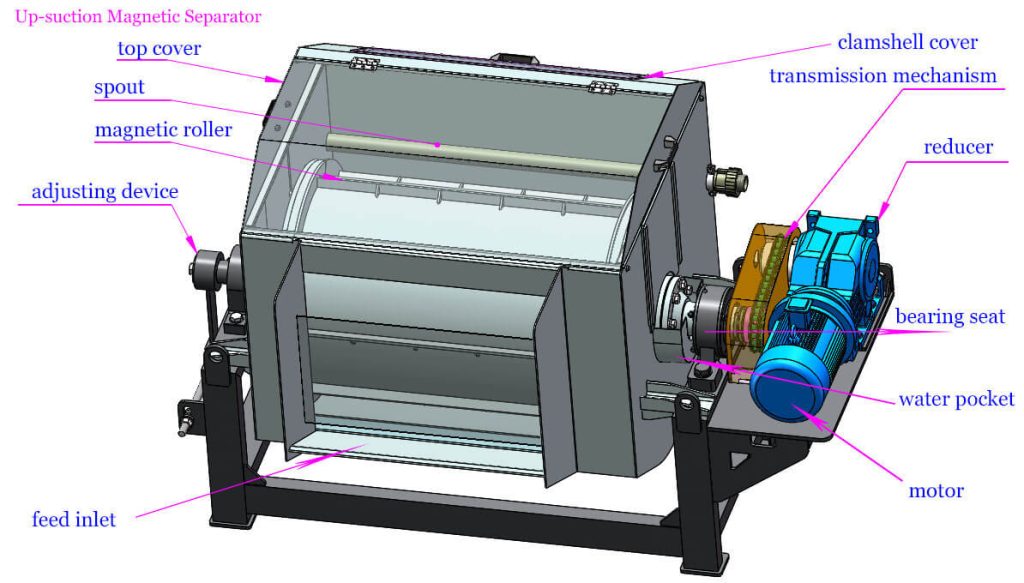

Ruijie up-suction magnetic drum separator mainly consist feed inlet, iron outlet,non-iron outlet, motor, reducer, magnetic roller, adjusting device, ect. The adjusting device can regulate the up and down displacements of the magnetic region.

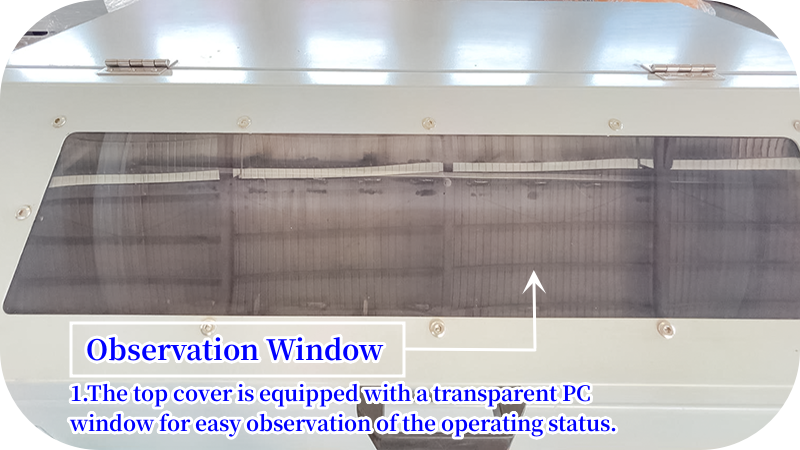

The top cover is made of 304 stainless steel with a thickness of 2mm, offering strong anti-rust and anti-corrosion properties.

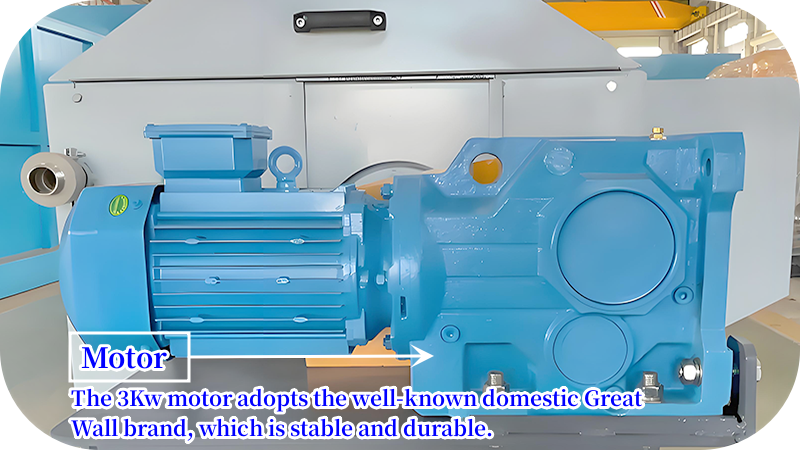

The motor is from a well-known domestic brand, ensuring stability and durability.
The main body is constructed with 4mm thick 201 stainless steel plates, providing enhanced rust resistance, corrosion resistance, and durability.

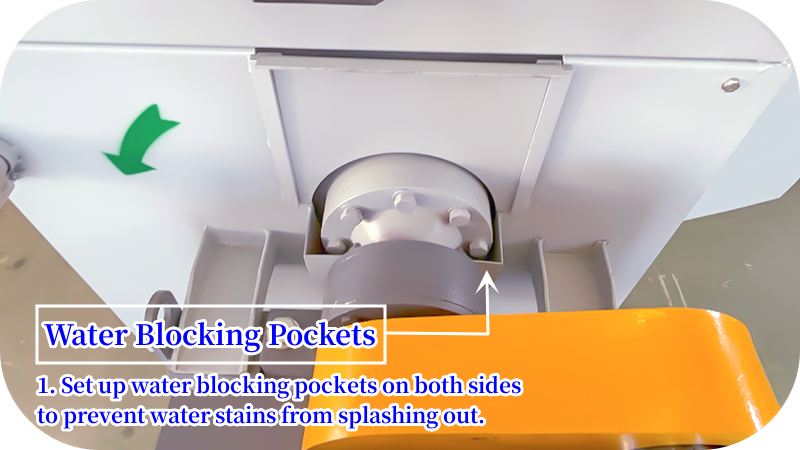

Water pocket on both sides prevent water from splashing out.
The feed inlet has a height-limiting baffle to prevent oversized materials from entering, effectively avoiding drum jams.
The transmission system uses a 16A sprocket structure, ensuring stable operation, long service life, and very low replacement frequency.
How to Choose a Up-suction Magnetic Separators?
Magnetic separator are usually divided into dry type and wet type according to the sorting medium. Our up-suction magnetic is more suitable for wet type.
There are some points need to pay attention to when choose a magnetic separator for your project.
Magnetic material type , such as iron, stainless steel, magnetite , and particle size, moisture content, bulk density.
Processing Capacity: Select equipment size based on required processing capacity (tons/hour).
Separation Goals: High-purity recovery for metal or impurity removal.
Dust-proof & Wear Resistance: For mining or abrasive environments, choose IP65 rating + ceramic/polyurethane-coated drums.
On-site Testing:Request material separation trials to validate efficiency, for example, recovery rate ≥98%.

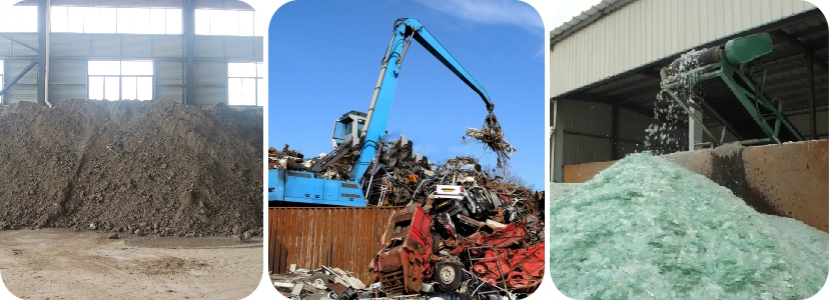

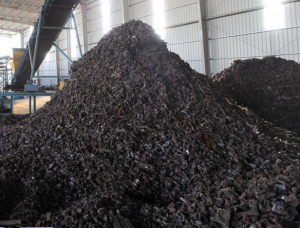

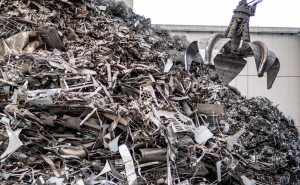

Ruijie up-suction magnetic separator have a good effect on magnetic materials separation from various metallurgical slag, such as scrap steel, steel slag treatment and slag sorting. It is designed with large processing capacity, high roller rotation speed, top quality magnetic roller. Contact us for customizable solutions.
