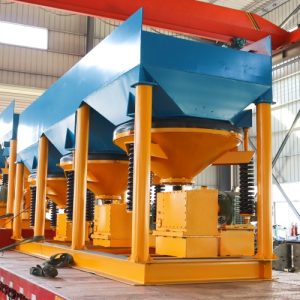

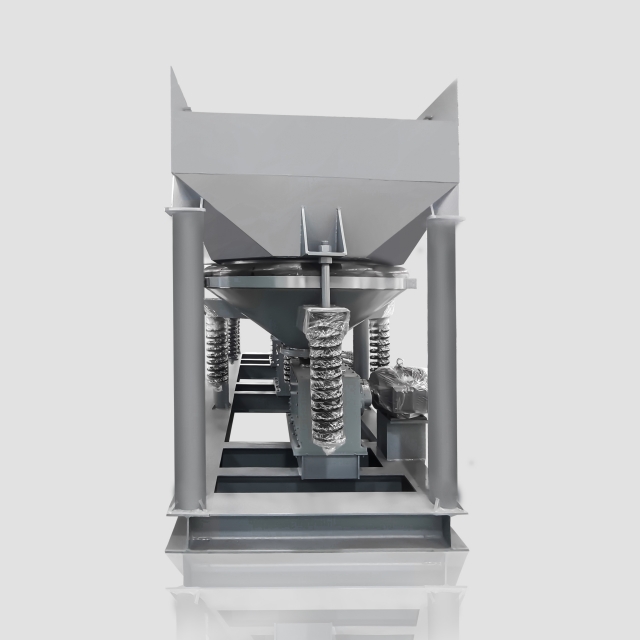

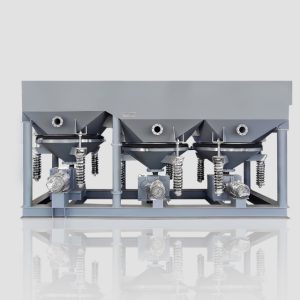

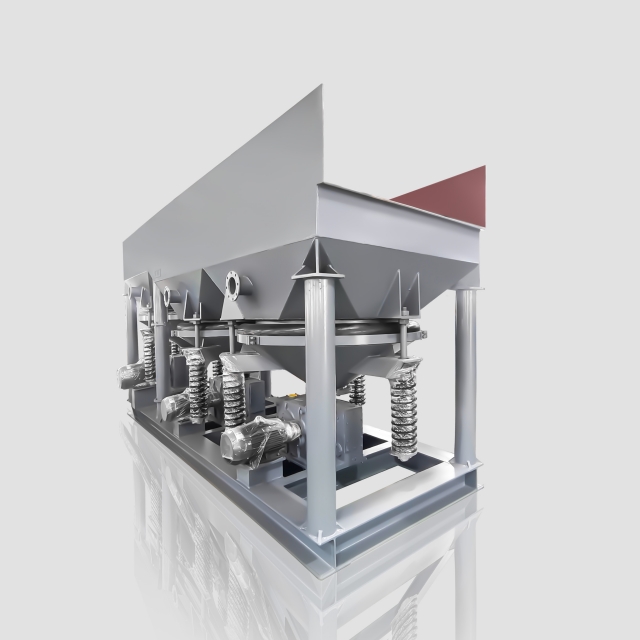

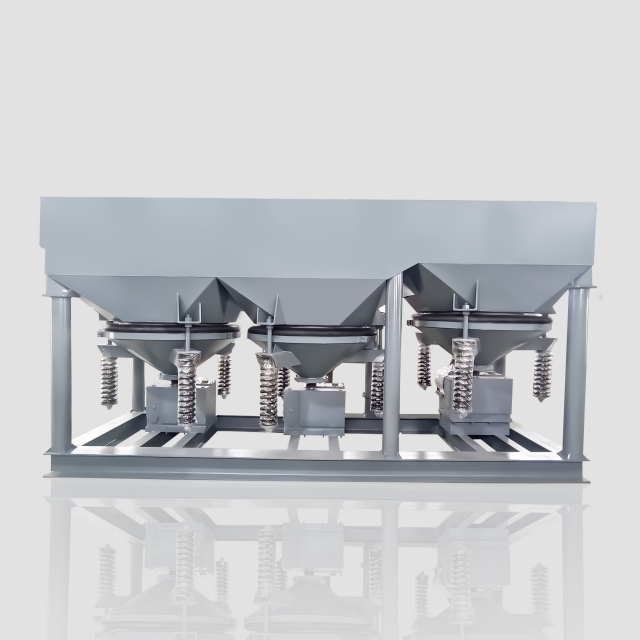

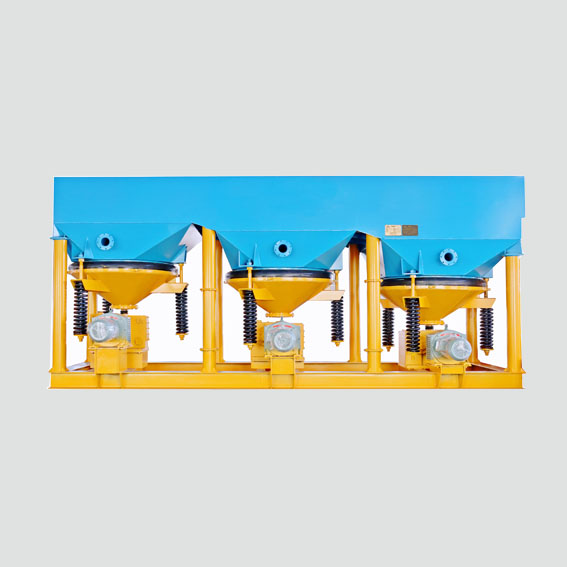

Three Chambers Mineral Jig Separator With 70 T/H
Three Chambers Mineral Jig Separator is widely used in the separation of metals such as copper, silver, tin, tungsten, tantalum, niobium, titanium, zirconium, chromium, etc.
1.The machine has three capacity chambers, the processing capacity is relatively large, and the work efficiency is super high.
2.This machine is made of special Q355B steel, durable, long service life.
3.The machine has strong adaptability, stable operation, low failure rate and low maintenance cost.
4.Beneficiation has a good effect, especially suitable for the beneficiation of fine-grained minerals.
Three Chambers Mineral Jig Separator Description
Three Chambers Mineral Jig Separator is mainly composed of jigging chamber, motor, cone bucket, frame, side panel assembly, screen fixing plate, etc. It has the characteristics of short rising time and long falling time of water flow, so the jig machine pulsation curve has a good effect on the recovery of fine minerals.
The conical spool valve is adopted, which works reliably, reduces the failure rate by 70%, and has low energy consumption, which can meet the sorting needs of different media and improve the processing capacity by more than 20%.
Jig beneficiation belongs to the deep groove separation operation, it uses water as the beneficiation medium, using the difference between the specific gravity of the selected mineral and the gangue to carry out the separation, the jig mostly belongs to the diaphragm type, the stroke and stroke can be flexibly adjusted according to the specific gravity of the selected mineral, and is widely used in the gravity beneficiation of tungsten, tin, hematite, limonite, manganese, titanium, antimony, lead, tantalum, niobium and other metals.
Three Chambers Mineral Jig Separator Parameter
| Model | Jigging Chamber | Diaphragm | Feed Particle Size （mm） | Supply Water Under Screen (m³/t) | Supply Water Pressure Under Screen (Mpa) | Processing Capacity (t/h) | Power (kw) | Dimensions(L*W*H)(mm) | Weight (kg) | ||
| Shape | Area(㎡) | Stroke(mm) | Jig Frequency (c/min) | ||||||||
| JT2-1 | Trapezia | 2.56 | 30M | 50~90 | 0-10 | 3~6 | ≥0.1 | 10~30 | 5.5 | 2228*1560*2591 | 2100 |
| JT4-2 | Trapezia | 4.5 | 30M | 50~90 | 0-10 | 20~50 | 5.5×2 | 4053*1560*2600 | 4200 | ||
| JT6-3 | Trapezia | 6.75 | 30M | 50~90 | 0-10 | 30~70 | 18.5 | 5562*1560*2600 | 5916 | ||
| JT8-2 | Trapezia | 8 | 30M | 50~90 | 0-25 | 40~80 | 11×2 | 5198*2050*2970 | 8172 | ||
| JT10-2 | Trapezia | 10 | 30M | 50~90 | 0-25 | 60~100 | 11×2 | 5693*2280*3240 | 11000 | ||
Get Free Quote of Three Chambers Mineral Jig Separator
With our three-chamber jig machine, the efficient separation of minerals is easy. Request a quote now and enjoy customized services and professional support to help you optimize your production processes.
Three Chambers Mineral Jig Separator Applications
Three Chambers Mineral Jig Separator has a wide range of applications in mining, incineration bottom ash, heavy industry, and other industries. Specifically, it can be used for ore, building materials, light industry, and other fields of screening, separation and recovery.
Waste Incineration Bottom Ash (IBA) Sorting Plant：They can be used for gravity separation of various metals in incineration bottom ash (IBA), so as to achieve the purpose of purification and increase the recovery rate.
Incineration Bottom Ash Industry Coal Mining Field Mining Industry
RUIJIE Three Chambers Mineral Jig Separator Suitable Materials
Gold Ore Tungsten Ore Copper Ore Iron Ore
Zinc Ore Diamond Mine Garnet Deposits Manganese Ore
