High Efficiency Mineral Crushing Stone Crusher Machine from China Factory Manufacturers

Ruijie High Efficiency Stone Crusher Machine is one of the crushing machines for slag treatment and mineral industry, crushing large materials to the required size.

1.High crushing efficiency: With high crushing rate and low energy consumption, suitable for processing hard and corrosive materials

2.Adjustable size of the sieve holes:Help to obtain required particle size of the crushed materials.

3.Durable Hammer Heads:Equipped with high-quality, wear-resistant hammer heads, position of the hammer head can be adjustable

4.Simple Structure:With a compact and straightforward design, making it easy to install, operate, and maintain.

High Efficiency Crushing Mineral Stone Crusher Machine Description

The crushing machine is a device for crushing large materials to the required size in the form of impact. According to different application, we divide crushing machine to four types:Iron hammer crusher,copper hammer crusher,stone hammer crusher and soil crusher. The stone hammer crusher is mainly used for stone crushing. Simple structure,high crushing rate,excellent particle shape, with fine crushing and rough grinding functions, making it essential for slag treatment plants, sand making at sand & gravel plants, minerals industry, etc. This is a valuable machine low energy consumption, but high efficiency.

Copper Hammer Crushing Machine is designed to crush and pulverize copper ores, copper scrap, and other copper-containing materials for recycling and processing purposes. Iron Hammer Crushing Machine is suitable for crushing medium hardness materials, such as limestone, slag, coke, metallurgy and other industrial sectors. High-Capacity Hammer Stone Crusher machine for widely use

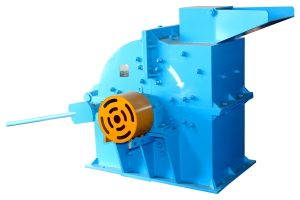

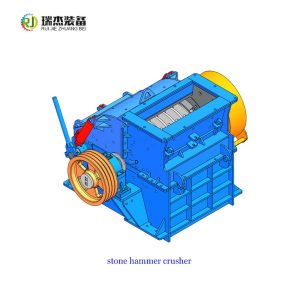

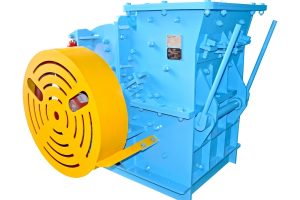

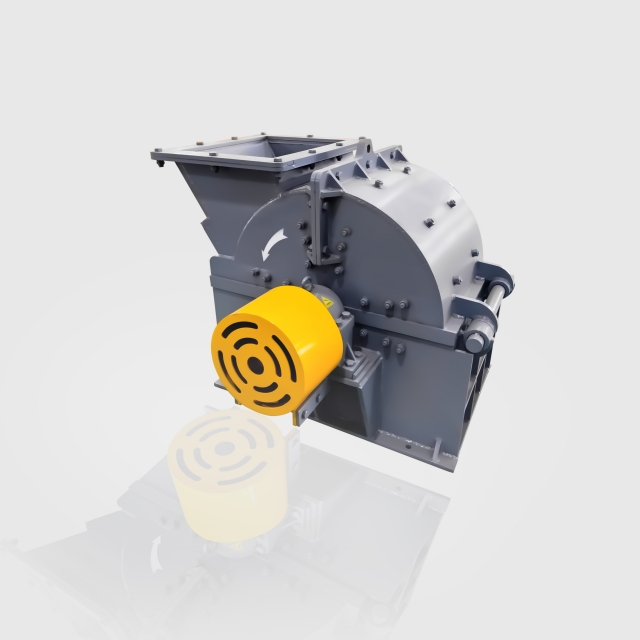

 Copper HammerCrusher                          Iron Hammer Crusher                            Stone Hammer Crusher

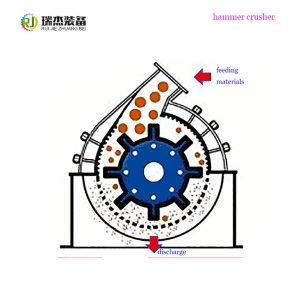

Working principle

When the material is transported to the feed inlet of the hammer crusher, it will be crushed by high-speed rotating hammerhead though striking, shearing, impacting and grinding.The particles will be discharge through the sieve holes of the sieve bars that placed under the rotor and the size of the sieve holes can be adjusted.

High Efficiency Mineral Crushing Stone Crusher Machine from China Factory Manufacturers

High Efficiency Crushing Mineral Stone Crusher Machine Parameter

Model Feed Inlet(mm) Power(kw) Rotor Rotation  Speed (r/min) Processing  Capacity (t/h) Dimensions (L*W*H)(mm) Weight(kg)
PC-DS650B 580*395 35~75 960~120 20~40 1415*1500*1130 2350
PC-DS800B 760*355 75~90 960~120 30~50 1450*1780*1170 2432
PC-DS1000B 916*410 80~110 960~120 50~80 1530*1990*1245 3470
PC-DS1200B 1116*355 80~120 960~120 80~120 1575*2165*1275 4684

Ruijie high efficiency mineral crushing stone crusher machine is able to handle various materials and produce uniform particle sizes makes it an essential tool in many industrial applications. As a professional renewable resource recycling and slag sorting equipment manufacturer, we can provide customized solution. Just contact us for more information.

Products Categories
Get A Free Quote
Contact Form Demo (#3)
Ruijie High Efficiency Mineral Crushing Stone Crusher Machine Video

High Efficiency Crushing Mineral Stone Crusher Machine Application

It is widely used in mining, metallurgy, cement, construction, and chemical industries, demonstrating  slag treatment plants and sand making at sand & gravel plants.

hammer crusher application

A Glimpse Into the Future of Recycling Equipment-Stone Crusher Machine

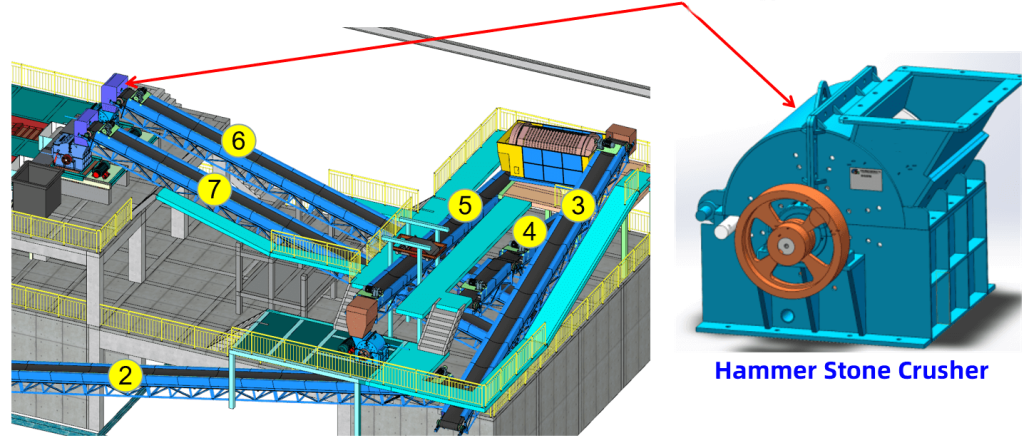

In the IBA(Incineration Bottom Ash) wet sorting production line, stone crusher machine is used to crush the large stone materials to small pieces, convenient for the next materials sorting. As the rapid development of the renewable resource recycle industry, the capacity of the IBA(Incineration Bottom Ash) will gradually increase, requiring larger processing capacity, higher processing speed and higher crushing rate. The market needs will promote the progress of crushing equipment technological innovation.

So how about the future trends of the stone hammer crushers?

  1. Automation and Smart Technology: The integration of IoT (Internet of Things) and AI (Artificial Intelligence) will enable real-time monitoring and optimization of crusher performance. Smart systems can predict maintenance needs, adjust operational parameters, and improve overall efficiency.
  2. Enhanced Durability: Advances in material science will lead to the development of even more wear-resistant components, extending the lifespan of crushers and reducing the need for frequent replacements.
  3. Customization and Modularity: Crushers will become more customizable to meet the specific needs of different IBA sorting production lines. Modular designs will allow for easy upgrades and adaptations as processing requirements evolve.

As the world moves towards sustainable industrial practices, stone hammer crushers will continue to be a key component in the efficient recovery of valuable resources from waste materials like slag.

High Efficiency Mineral Crushing Stone Crusher Machine from China Factory Manufacturers

FAQs

1. How to choose the appropriate product model?

In order to recommend the most suitable model, please provide us with information about the material, including its composition, size, processing capacity (per hour), and expected separation results.

2. How long is the production cycle of the equipment?

Different products have different production cycles, about 15-40 days.

3. How long is the warranty period of the equipment?

The warranty period is 1 year, calculated from the date the equipment arrives at the buyer’s site; Consumables, vulnerable parts, and damage caused by improper operation are not covered by the warranty.

4. Which payment terms are available to us?

We accept T/T terms or L/C terms. A 50% down payment is reguired in advance, and the 50% balance shall be setled before shipment;Under L/C terms, a 100% irrevocable L/C without ‘soft clauses’ can be accepted.

5. Does it support test machine with incoming materials?

Yes, of course. You can bring the materials to the factory for testing in person, or you can mail the materials. We will test the materials according to your needs and provide you with the data information and on-site video after testing.

6. Does it support inspection before shipment?

Yes, it is possible. You can come to the factory for inspection or have a third-party inspection.
