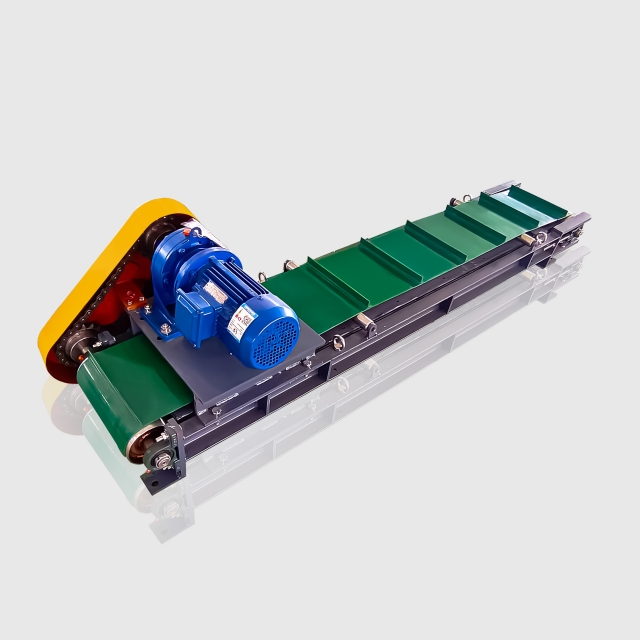

High Quality Permanent Suspended Magnetic Separator RCYD3F-1 Manufacturer
Low Price Permanent Magnetic Iron Separator RCYD3F-1-Manufacturer
Suspended Permanent Magnetic Iron Separator For Incineration Bottom Ash (IBA) Sorting
Ruijie Magnetic Separation Machine RCYD3F-1 Ued to Screen the Fine Iron for Sale

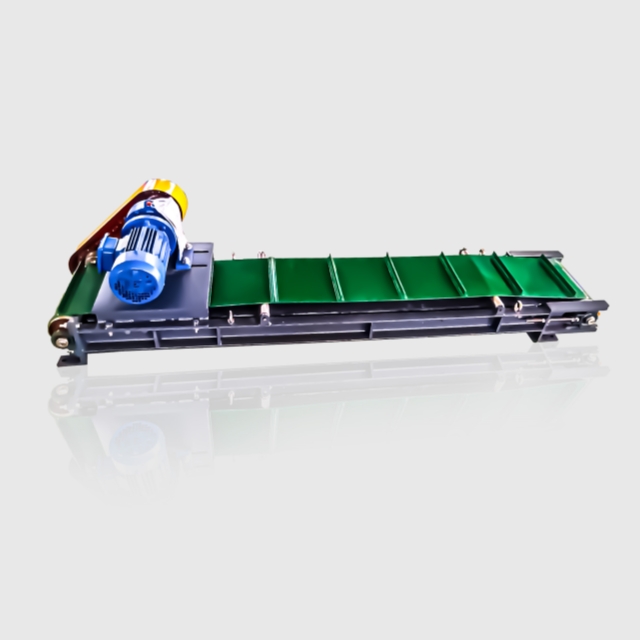

High Quality Permanent Suspended Magnetic Separator RCYD3F-1 Manufacturer

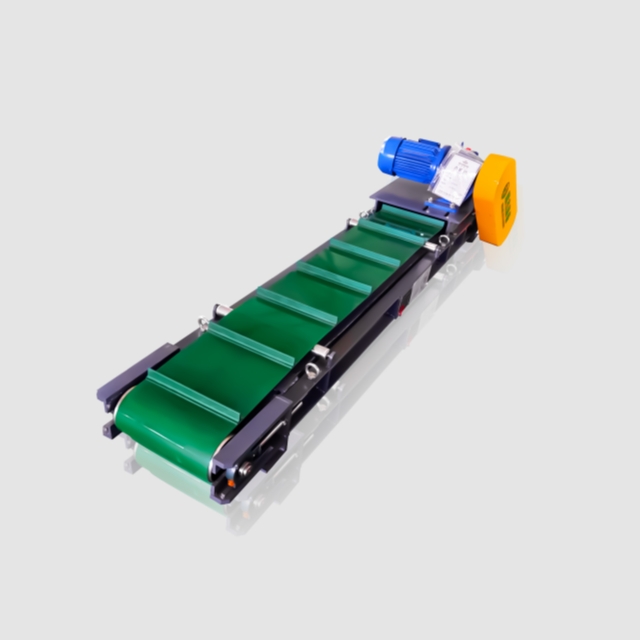

Low Price Permanent Magnetic Iron Separator RCYD3F-1-Manufacturer

Suspended Permanent Magnetic Iron Separator For Incineration Bottom Ash (IBA) Sorting

The suspended magnetic separator is specifically designed for the efficient removal of iron contaminants from incineration bottom ash (IBA). Equipped with powerful permanent magnets, it effectively attracts and removes metallic particles, which helps reduce maintenance costs and improves the recycling process. This separator is an ideal solution for waste management and metal recovery applications.

Features of Permanent Magnetic Iron Separator

  • The main parts of the equipment are made of the best stainless steel, welded by senior qualified welders, and the assembly process is rigorous.
  • The waterproof performance of the magnetic group parts is relatively good, the core part is rust-proof and corrosion-resistant, the failure rate is ultra-low, and the service life is long.
  • The machine is compact in structure, easy to install and simple to install, and easy to add to various production lines.

Suspended Permanent Magnetic Iron Separator Description

This permanent magnetic separator is mostly used for scrap metal recycling, and is installed at the tail of the shaker surface, so that the iron in the scrap metal is separated from other metals during the shaker operation. It can effectively separate ferrous materials from other materials, so that iron has higher purity.

The main function of the Permanent Magnetic Separator is to remove metal impurities from the material and prevent metal impurities from damaging production equipment and products.

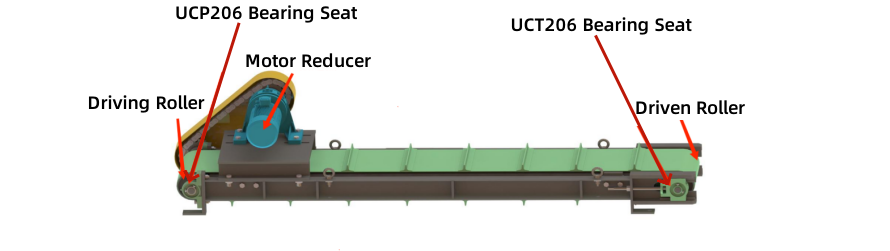

Suspended Permanent Magnetic Separator Structure Diagram

High Sorting Sccuracy Permanent Magnetic Iron Separator Structure Diagram

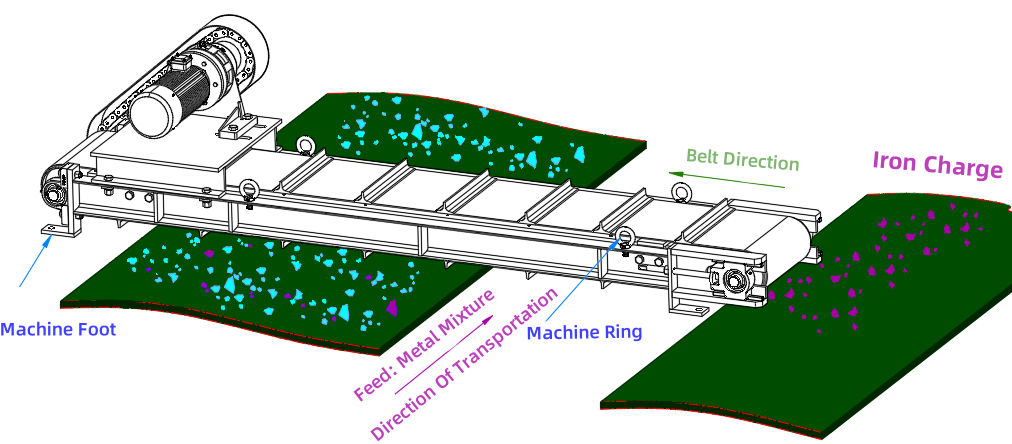

Working Principles Of Permanent Magnetic Iron Separator

When the Suspended Permanent Magnetic Separator is working, the iron material on the table concentrator will be adsorbed on the surface of the belt when it reaches the bottom of the magnetic system.

As the belt rotates, it will rotate to a non-magnetic field area, and the iron material will fall into the receiving device due to the gravity and inertia, achieving the goal of continuous and automatic iron removal.

Working Principle Of Permanent Magnetic Sorting Machine

Sepecifications of Suspended Permanent Magnetic Separator

Model Effective Belt Width (mm) Motor Voltage Magnetic Block Material Processing Capacity (t/h) Power（kw） Dimensions (L*W*H) (mm) Weight （kg）
RCYD3F-1 300 380V 50Hz Ndfeb, ferrite 3-5 1.5 2265*570*502 502

Get Free Quote of Permanent Magnetic Iron Separator for Iron Sorting

Need to efficiently separate fine iron from Incineration Bottom Ash (IBA)? RUIJIE suspended magnetic iron separator with permanent magnets is the perfect solution for you! Fill out the inquiry form today to get a free quote and find out how you can improve production quality and efficiency with our equipment.

Products Categories
Magnetic Separation Machine
Eddy Current Separator
Wet Drum Magnetic Separators
Up-suction Magnetic Drum Separators
Electromagnetic Overband Separator
High Intensity Permanent Magnetic Separator
Gravity Sorting Machine
Jig Concentrator
Crushing Machine
Iron Hammer Crushing Machine
Hammer Stone Crusher
Copper Hammer Crushing Machine
Screening Machine
Vibrating Dewatering Screens
Trommel Screen Machine
Conveying Machine
Bucket Wheel Sand Washer
Screw Sand Washing Machine
Screw Conveyor
Reciprocating Plate Feeder
Get A Free Quote
Contact Form Demo (#3)
Permanent Suspended Magnet for Iron Filings Recycling Video

Applications of Suspended Permanent Magnetic Iron Separation

Suspended Permanent magnetic iron separator is mostly used for scrap metal recycling, and are generally used in conjunction with desktop concentrators.

The magnetic separation equipment is simple to operate, the sorting efficiency is ultra-high, and the iron removal rate can reach 100%.

1. Sorting the magnetic materials in river sand, mainly sorting river sand with more iron content.

2. Permanent Magnetic Separator are also widely used  in mining,  and other industries. In addition, it is also suitable for incineration bottom ash (IBA) sorting plants, for fine magnetic iron materials, iron powder is sucked onto the belt and then transported to the iron powder area.

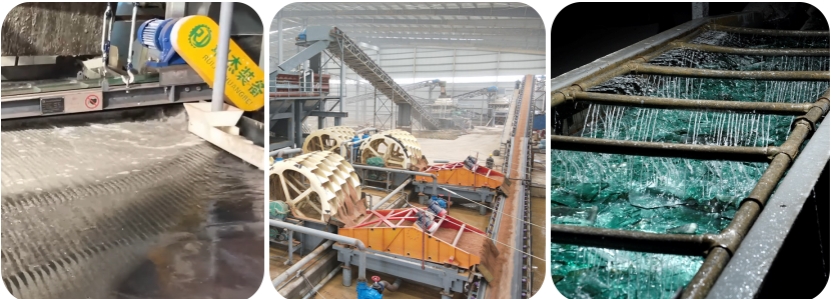

High Quality Suspended Permanent Magnetic Separator Applications

               IBA Wet Sorting                                  River Sand Iron Removal                         Glass Wet Sorting

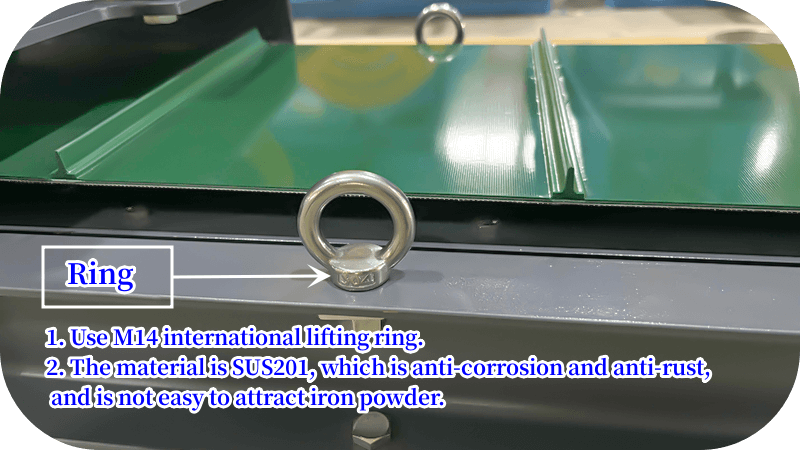

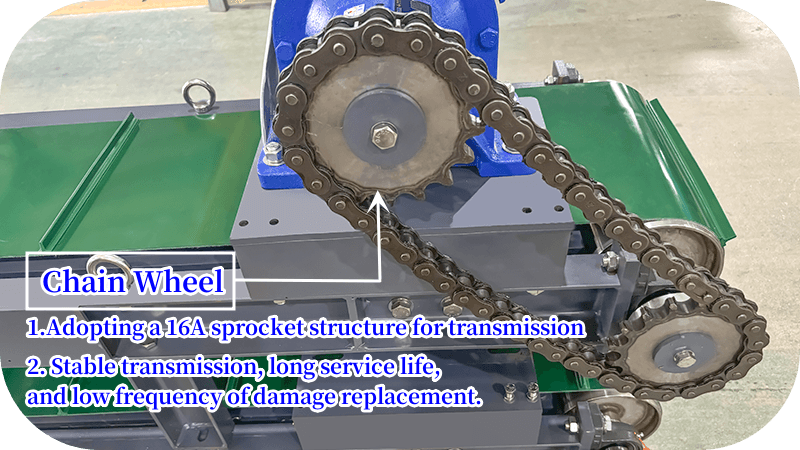

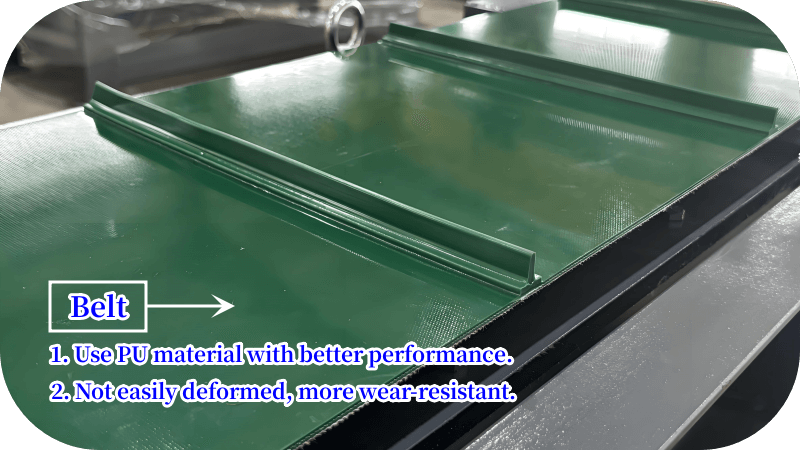

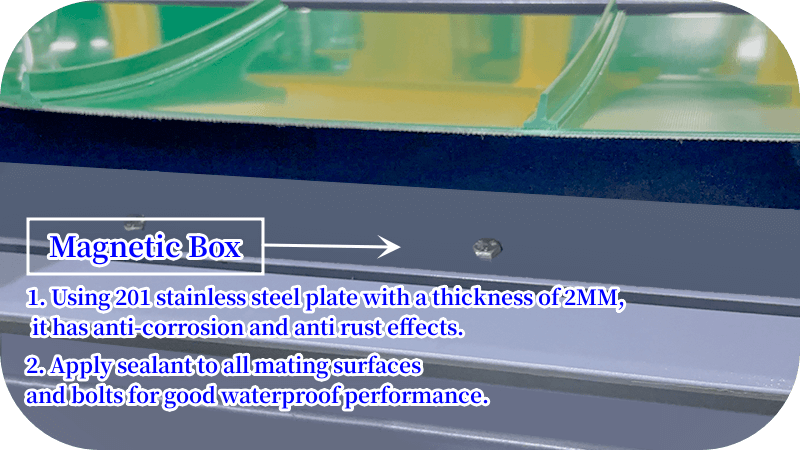

Permanent Magnetic Separator for Screening the Fine Iron Detail Display

Iron Powder Magnetic Material is Removed From Incineration Bottom Ash (IBA). The iron remover machine is made of high-performance permanent magnet material, with balanced magnetic circuit and strong adsorption force and the sorting efficiency is higher than that of products in the peer market.

Suspended permanent magnetic iron separator is widely used in mining, incineration bottom ash, garbage sorting and metal iron recycling.

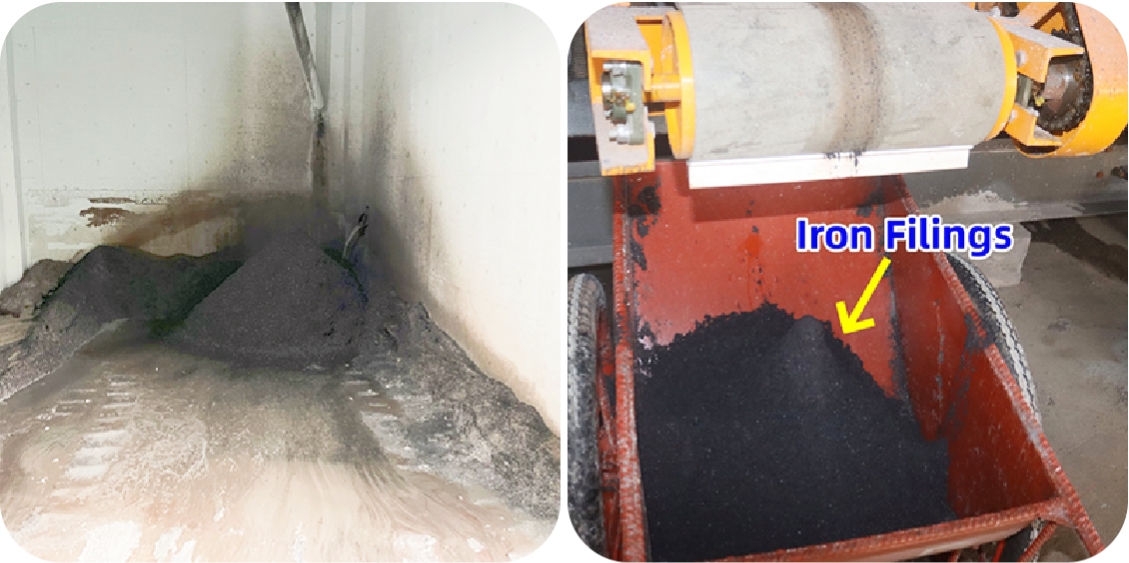

Iron Powder Magnetic Material is Sorted By the Permanent Magnetic Iron Separator

How To Troubleshoot The Suspended Permanent Magnetic Iron Separator

Common Fault

 Analysis of Causes

Elimination Methods

The belt is loose

 The belt is used for a long time, and the tension force becomes longer

Twist the adjusting screw of the driven roller to push the driven roller to the left, when the belt is tightened

FAQs

1. How to choose the appropriate product model?

In order to recommend the most suitable model, please provide us with information about the material, including its composition, size, processing capacity (per hour), and expected separation results.

2. How long is the production cycle of the equipment?

Different products have different production cycles, about 15-40 days.

3. How long is the warranty period of the equipment?

The warranty period is 1 year, calculated from the date the equipment arrives at the buyer’s site; Consumables, vulnerable parts, and damage caused by improper operation are not covered by the warranty.

4. Which payment terms are available to us?

We accept T/T terms or L/C terms. A 50% down payment is reguired in advance, and the 50% balance shall be setled before shipment；Under L/C terms, a 100% irrevocable L/C without ‘soft clauses’ can be accepted.

5. Does it support test machine with incoming materials?

Yes, of course. You can bring the materials to the factory for testing in person, or you can mail the materials. We will test the materials according to your needs and provide you with the data information and on-site video after testing.

6. Does it support inspection before shipment?

Yes, it is possible. You can come to the factory for inspection or have a third-party inspection.
