Magnetic Iron Ore Separator is suitable for the separation of strong magnetic minerals.The magnetic field strength can be customized.China Manufacturer.

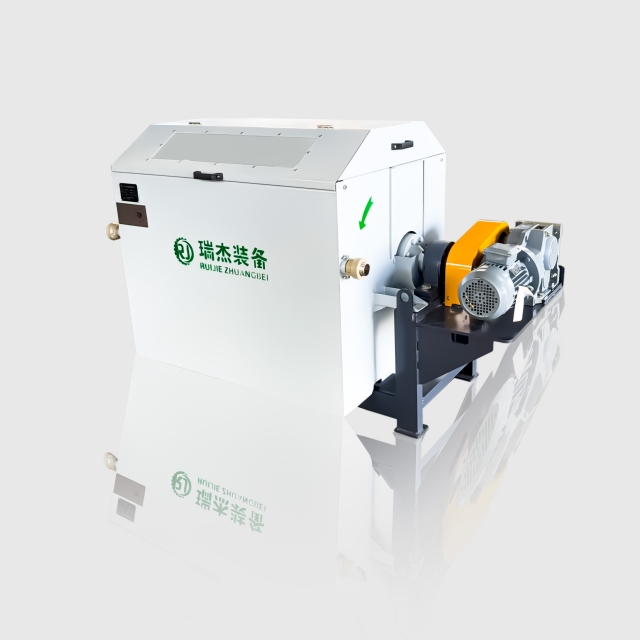

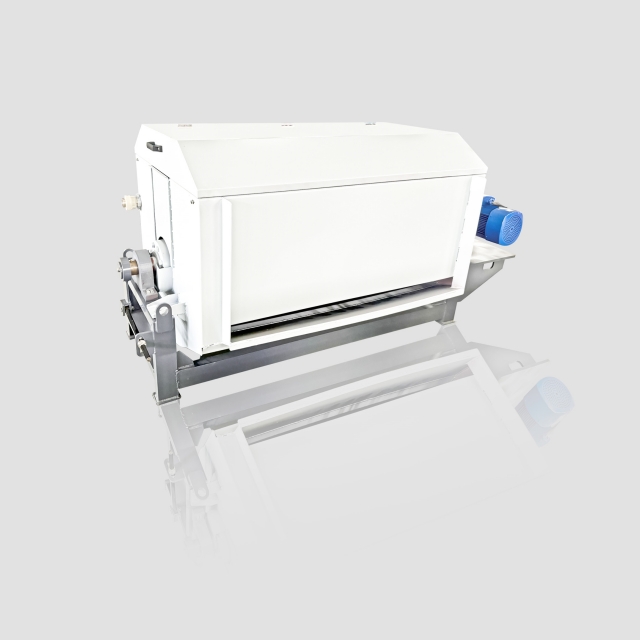

Iron Magnetic Separation Machine CTS-50090L from china factory
Iron Ore Wet Magnetic Separation Equipment CTS-50090L from china supplier

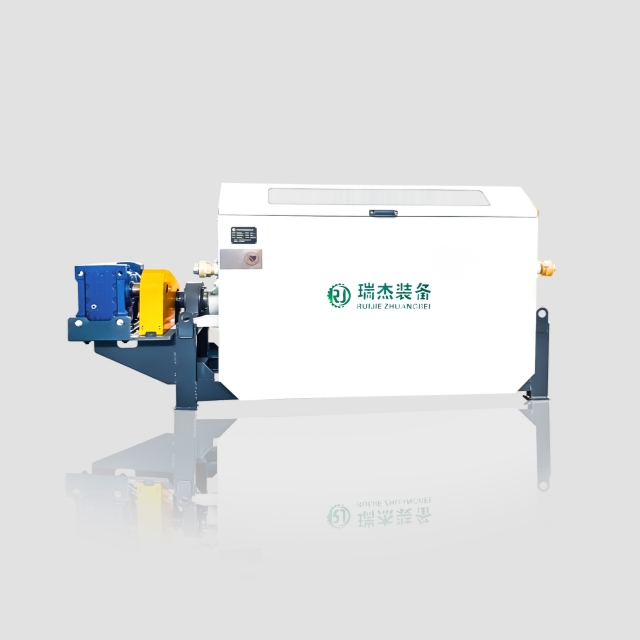

Iron Ore Wet Magnetic Separator CTS-50090L from china manufacturer
Magnetic Iron Ore Separator is suitable for the separation of strong magnetic minerals.The magnetic field strength can be customized.China Manufacturer.
Iron Magnetic Separation Machine CTS-50090L from china factory
Iron Ore Wet Magnetic Separation Equipment CTS-50090L from china supplier
Iron Ore Wet Magnetic Separator CTS-50090L from china manufacturer

Magnetic Iron Ore Separator for Wet Separation

Iron Magnetic Separation Machine is suitable for the separation of strong magnetic minerals.The magnetic field strength can be customized.

1.The drum thickness of the machine is large, and it is made of stainless steel material, which is wear-resistant and practical.

2.The machine shell is made of high-quality 201 stainless steel, and the ceramic paint spraying process is adopted, which has better corrosion resistance, wear resistance and longer service life

3.The use of rare earth magnetic materials (NdFeb) has a high processing capacity and a recovery rate of up to 99%.

Magnetic Iron Ore Separator for Wet Separation Description

Magnetic Iron Ore Separator is a kind of magnetic separator commonly used in iron ore concentrator, which is suitable for separating strong magnetic minerals.It is also suitable for iron removal operations of coal, Incineration Bottom Ash (IBA), building materials and other materials.



Working Diagram of Electro Drum Magnet

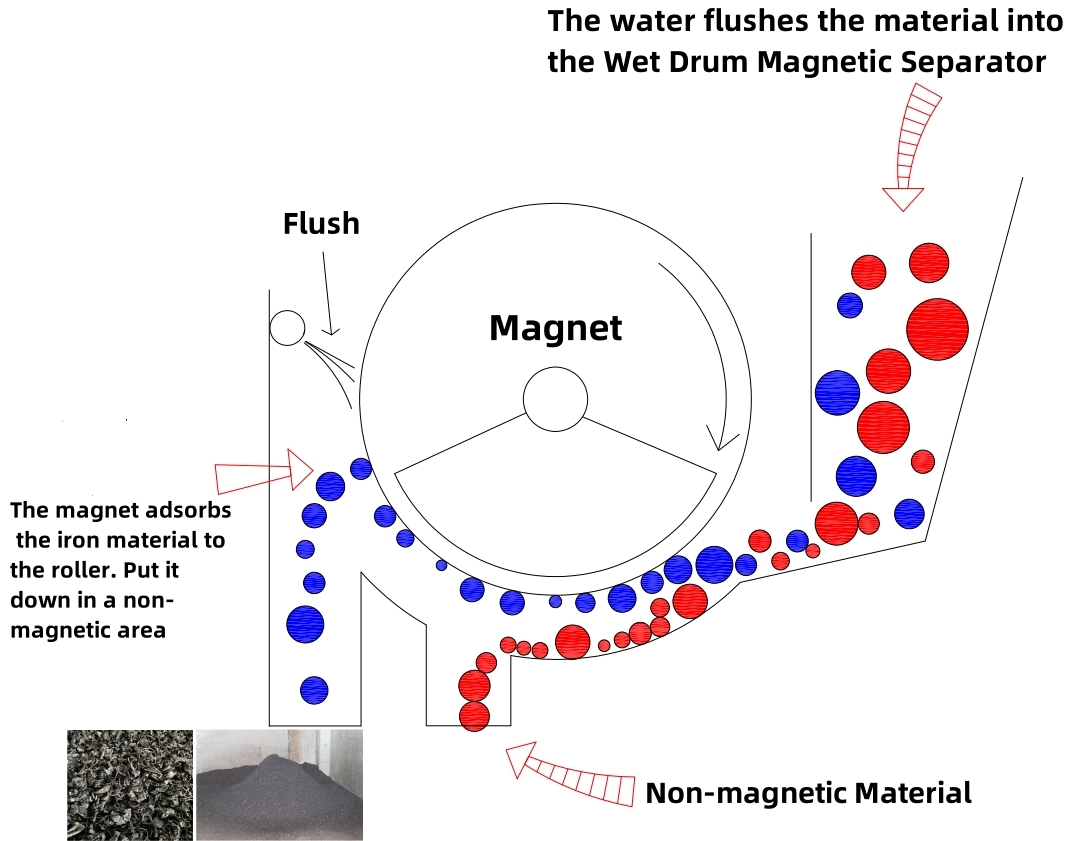

Wet Magnetic Separator Working Diagram

The direction of movement of the slurry is the same as the direction of rotation of the cylinder or the direction of movement of the product.The slurry is fed directly into the magnetic system of the cylinder from the feed box, and the non-magnetic ore particles and the ore particles with weak magnetic properties are discharged through the gap between the two bottoms under the cylinder.



The magnetic ore particles are sucked on the surface of the cylinder, rotated with the cylinder to the weak point of the magnetic field at the edge of the magnetic system, and are unloaded into the concentrate tank by the unloading water pipe.



Magnetic Iron Ore Separator has a simple structure, large processing capacity, and can also be used in series with multiple units, which is suitable for the rough separation and selection of coarse-grained strong magnetic ores with a particle size of 0~6mm, or for the recovery of magnetic heavy media.Wet Drum Magnetic Separator 3D Working Video

Magnetic Iron Ore Separator Parameter

Model Dimensions (L*W*H) (mm) Drum Length(mm) Rotor Surface Magnetic Field (Gs) Magnetic Block Material Processing Capacity(t/h) Weight(kg)
RJCTS60150 2438*1052*1010 1500 Highest Point 4400 NdFeB 15-25 1115
RJCTS50150 2403*952*865 1500 Highest Point 4400 NdFeB 15-25 931
RJCTS50120 2038*952*865 1200 Highest Point 4400 NdFeB 12-20 832
RJCTS5090 1757*952*1015 900 Highest Point 4400 NdFeB 5-15 780

Get Free Quote of Iron Magnetic Separation Machine

Looking for top-of-the-line magnetic separation equipment? The RUIJIE Iron Magnetic Separation Machine offers unmatched separation efficiency and stability.

Fill out the inquiry form to get a free quote now, enjoy exclusive customized services, and take your production process to the next level!

Products Categories
Get A Free Quote
Contact Form Demo (#3)
Iron Magnetic Separation Machine for Wet Separation Video

Magnetic Iron Separator Applications

Magnetic Iron Separator is an important magnetic separation equipment, which can be used to recover a variety of substances in heavy media, and has a wide range of application prospects in mining, Incineration bottom ash, scrap metal waste recycling and other fields.

1. Tungsten Ore: The wet magnetic separation machinery can separate tungsten-containing minerals from non-magnetic minerals to achieve the purpose of purification.

2. Waste Incineration Power Plant Slag:Domestic waste incineration bottom ash (also known as slag) is a general waste, which can be used as secondary building materials.Wet Drum Magnetic Separators can separate ferromagnetic materials from the slag to achieve the purpose of purification and achieve maximum economic value.

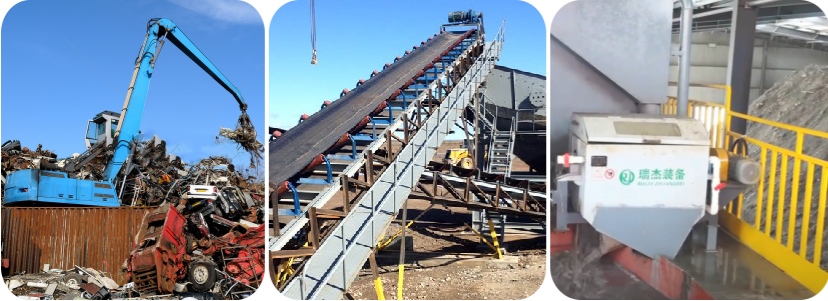

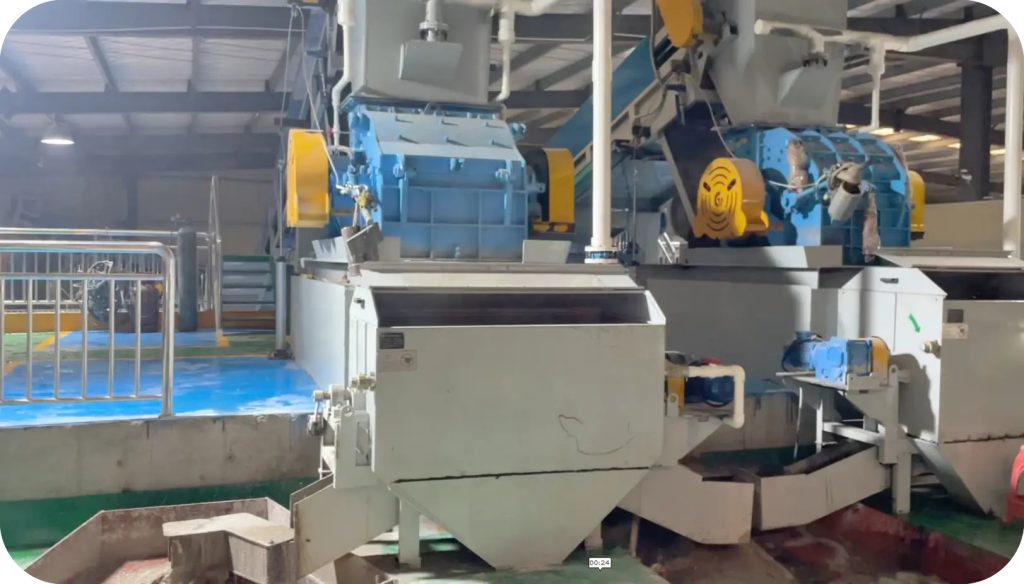

Magnetic Iron Separator Applications

                     ASR Industry                                               Iron Ore Industry                                                    IBA Industry

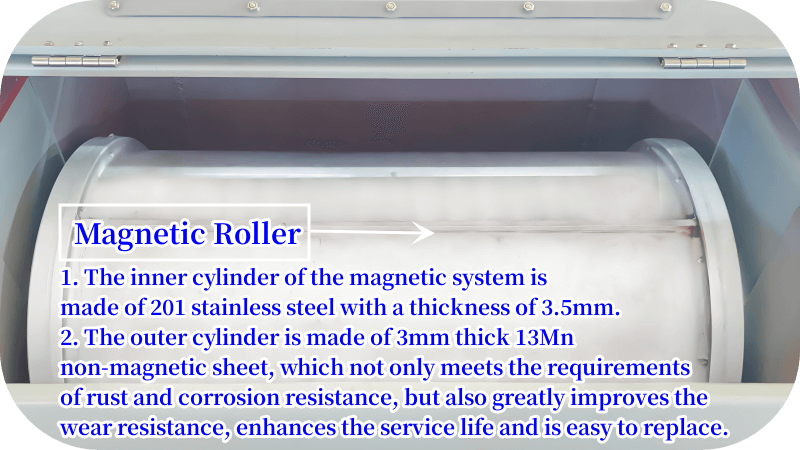

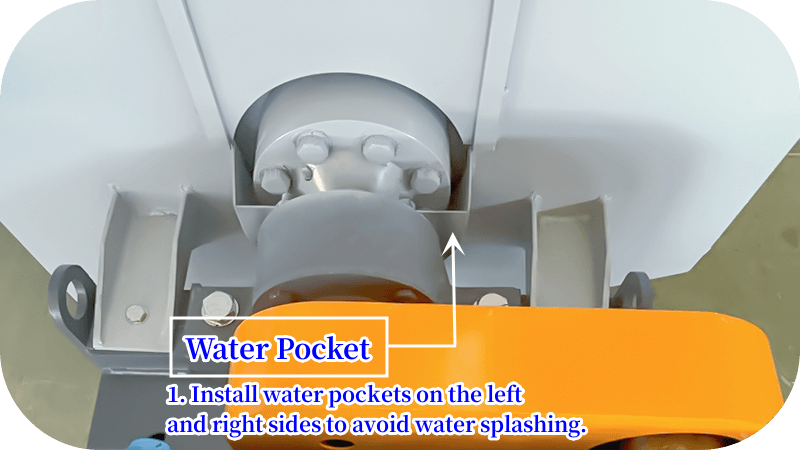

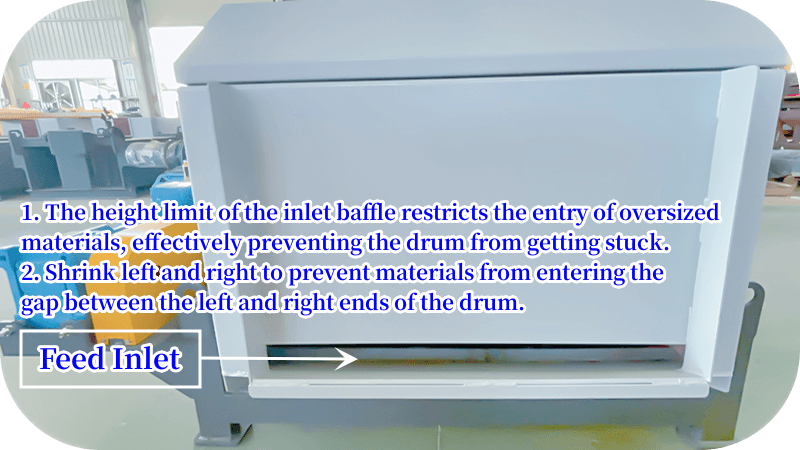

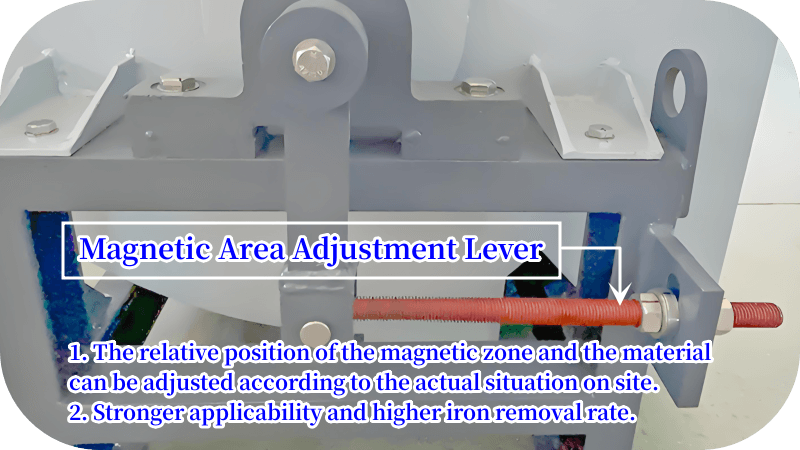

Magnetic Iron Ore Separator for Wet Separation Detail Display

What Mistakes Should Be Avoided In The Later Maintenance Of Magnetic Iron Ore Separator ?

1.Lgnoring Equipment Inspection: The inspection of equipment is an important part of maintenance, and ignoring inspection may lead to potential problems with equipment and affect its normal operation. Therefore, the equipment should be inspected regularly, including the operating status of the equipment, lubrication, bolt tightening, etc.

2.Excessive Lubrication: Lubrication is the basic part of equipment maintenance, but excessive lubrication may cause damage to the equipment. Therefore, lubrication should be done in accordance with the equipment manufacturer’s recommendations and care should be taken not to over-lubricate.

3.Neglect Of Equipment Cleaning: Equipment cleaning is an important part of maintenance, and neglecting cleaning may lead to corrosion, rust and other problems in equipment. Therefore, the equipment should be cleaned regularly, including the surface, bearings, chains and other parts of the equipment.

FAQs

1. How to choose the appropriate product model?

In order to recommend the most suitable model, please provide us with information about the material, including its composition, size, processing capacity (per hour), and expected separation results.

2. How long is the production cycle of the equipment?

Different products have different production cycles, about 15-40 days.

3. How long is the warranty period of the equipment?

The warranty period is 1 year, calculated from the date the equipment arrives at the buyer’s site; Consumables, vulnerable parts, and damage caused by improper operation are not covered by the warranty.

4. Which payment terms are available to us?

We accept T/T terms or L/C terms. A 50% down payment is reguired in advance, and the 50% balance shall be setled before shipment;Under L/C terms, a 100% irrevocable L/C without ‘soft clauses’ can be accepted.

5. Does it support test machine with incoming materials?

Yes, of course. You can bring the materials to the factory for testing in person, or you can mail the materials. We will test the materials according to your needs and provide you with the data information and on-site video after testing.

6. Does it support inspection before shipment?

Yes, it is possible. You can come to the factory for inspection or have a third-party inspection.
