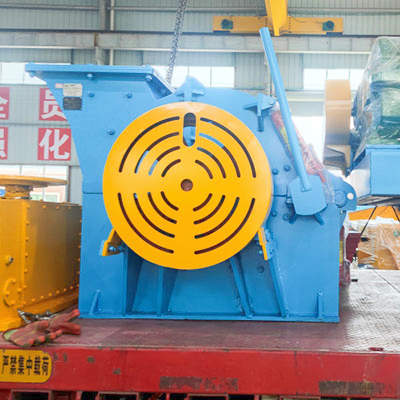

Iron Hammer Crusher can carry out fine crushing action on medium hardness and brittle materials.

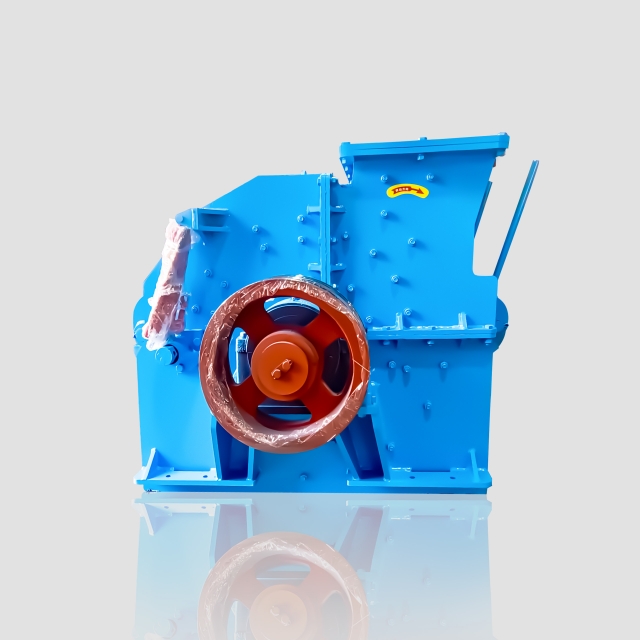

Iron Hammer Crusher with low energy consumption

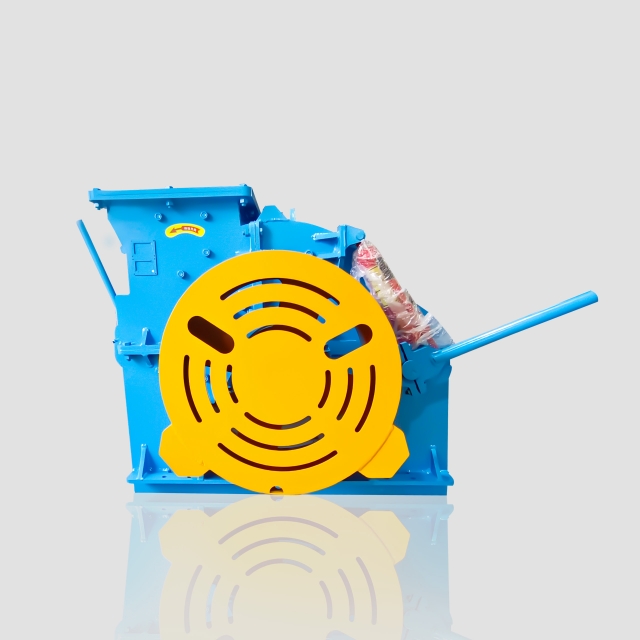

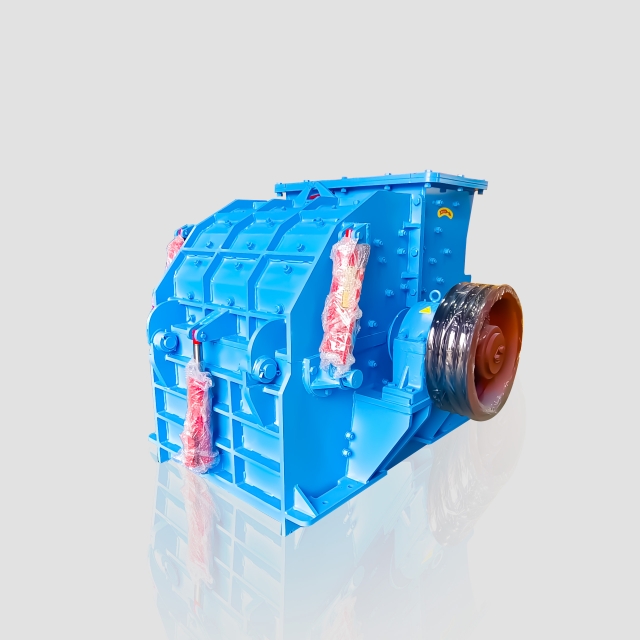

High-performance Iron Hammer Crusher for Stone Breaking

High-Performance Iron Hammer Crusher for Slag Crushing

Industrial Iron Hammer Crusher can carry out fine crushing action on medium hardness and brittle materials.

1.The casing plate of the iron hammer crusher is made of Q355B alloy high-strength structural steel plate, which is better than ordinary carbon structural steel, and can withstand large loads and has better strength and stability under complex working conditions.

2.The thickness of the machine shell is 20mm, the strength and toughness have been better improved, it can better resist the external extrusion and bending and other forces, can withstand greater impact force, and the working durability and stability of the machine are greatly improved

3.The hammer head of the machine is made of ZGMn13-3 (high manganese steel), which has good toughness and fatigue resistance, and can withstand large impact loads without breaking.

Get A Free Quote

Iron Hammer Crusher for Slag Crushing Description

Industrial Iron Hammer Crusher has a wide range of versatility, can adjust the fineness of crushing, and has the advantages of high production efficiency, low energy consumption, safe use and convenient maintenance.

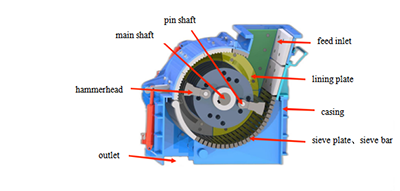

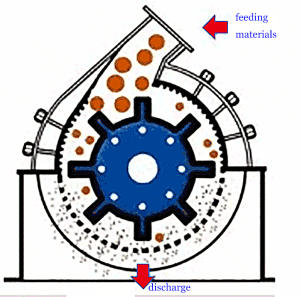

Working Principle of the Iron Hammer Crusher

Iron Hammer Crusher mainly relies on impact to crush materials. The material enters the hammer mill, is crushed by the impact of the hammer head of the high-speed rotation, the crushed material obtains kinetic energy from the hammer head of the hammer crusher，and rushes to the baffle plate and the sieve bar in the frame from the high speed.

And at the same time the materials hit each other and are broken many times, and the material that is smaller than the gap of the sieve strip is discharged from the gap, and the individual larger materials are broken by the impact of the hammer head again, grinding, and squeezing on the sieve bar, and the material is squeezed out of the gap by the hammer head of the hammer crusher.This results in a product of the desired particle size.

Iron Hammer Crusher for Slag Crushing Parameter

Model	Feed Inlet (mm)	Feed Particle Size（mm）	Processing Capacity (t/h)	*Dimensions （LWH）(mm)*	Weight (kg）
GRDT-650ZB	560*396	100	2-4	149015801190	2557
GRDT-800ZB	760*366	120	3-5	158017701270	3720
GRDT-1000Z	960*520	150	4-6	181018401350	4400

Get Free Quote of Iron Hammer Crusher

Professional R&D and production Iron Hammer Crusher manufacturer.Crushing all kinds of mining equipment can be customized on demand.High crushing ratio and low maintenance costs.

Get A Free Quote Now

Products Categories

Magnetic Separation Machine

Eddy Current Separator

Wet Drum Magnetic Separators

Up-suction Magnetic Drum Separators

Electromagnetic Overband Separator

Permanent Magnetic Separator

Gravity Sorting Machine

Jig Concentrator

Crushing Machine

Iron Hammer Crushing Machine

Hammer Stone Crusher

Copper Hammer Crushing Machine

Screening Machine

Vibrating Dewatering Screens

Trommel Screen Machine

Conveying Machine

Bucket Wheel Sand Washer

Screw Sand Washing Machine

Screw Conveyor

Reciprocating Plate Feeder

Get A Free Quote

Iron Hammer Crusher Video

Iron Hammer Crusher for Slag Crushing Applications

Industrial Iron Hammer Crusher is an essential equipment for the early production of many industries, especially in the Mining, sand and gravel industry, garbage crushing and recycling industry,Incineration Bottom Ash (IBA) sorting and recycling industry.

It has a wide range of versatility, can adjust the fineness of crushing, has the advantages of high production efficiency, low energy consumption, safe use, convenient maintenance, etc., so it has been favored by all walks of life

Iron Hammer Crusher

High-Performance Iron Hammer Crusher for Slag Crushing

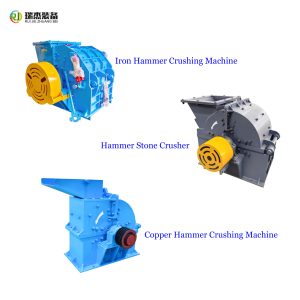

Hammer crusher we are providing can be divided into three series, iron type , copper type and stone type. They can be used for different conditions according to the materials and your needs.

Advantages of Iron Hammer Crusher

More suitable for crushing slag materials, with the high crushing rate and low energy consumption.
The position of the hammerhead can be adjusted according to the degree of wear.
You can get the required particle size of the material just by adjusting the size of the sieve holes, the particles shape is cubic, there is extremely low needle flake content.

We make the anti-leakage, so there is little affection by materials moisture content.
The material is more wear-resistant and corrosion-resistant, and more convenient to maintain.

FAQs

1. How to choose the appropriate product model?

In order to recommend the most suitable model, please provide us with information about the material, including its composition, size, processing capacity (per hour), and expected separation results.

2. How long is the production cycle of the equipment?

Different products have different production cycles, about 15-40 days.

3. How long is the warranty period of the equipment?

The warranty period is 1 year, calculated from the date the equipment arrives at the buyer’s site; Consumables, vulnerable parts, and damage caused by improper operation are not covered by the warranty.

4. Which payment terms are available to us?

We accept T/T terms or L/C terms. A 50% down payment is reguired in advance, and the 50% balance shall be setled before shipment；Under L/C terms, a 100% irrevocable L/C without ‘soft clauses’ can be accepted.

5. Does it support test machine with incoming materials?

Yes, of course. You can bring the materials to the factory for testing in person, or you can mail the materials. We will test the materials according to your needs and provide you with the data information and on-site video after testing.

6. Does it support inspection before shipment?

Yes, it is possible. You can come to the factory for inspection or have a third-party inspection.
