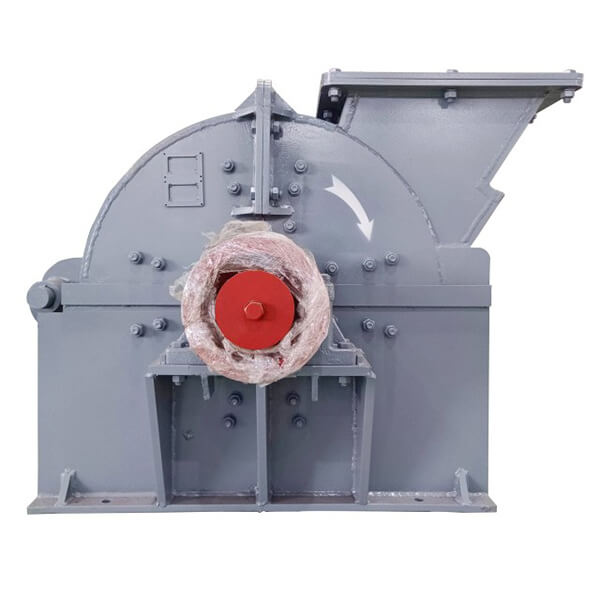

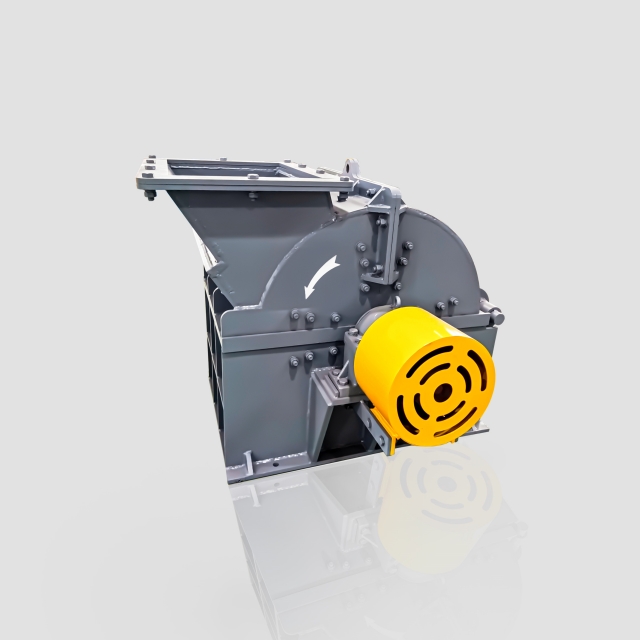

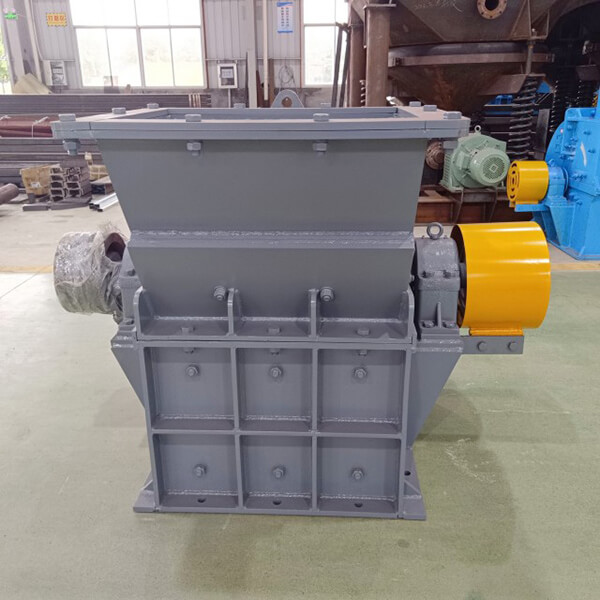

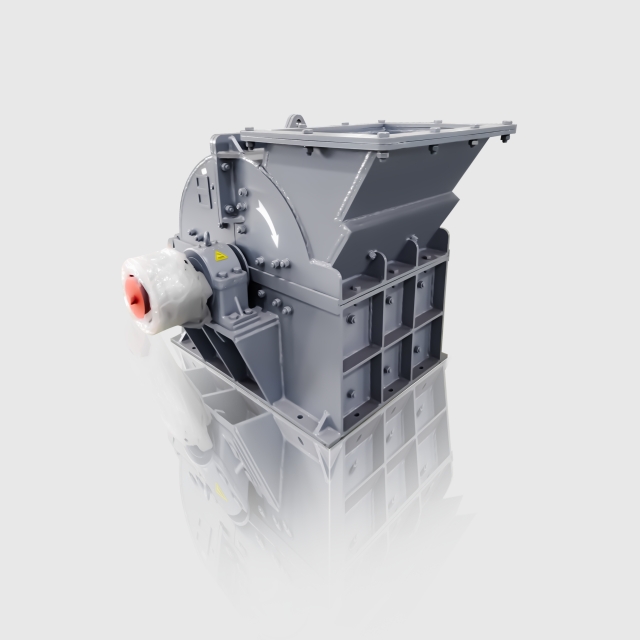

Industrial Stone Hammer Crusher for Broken Stone

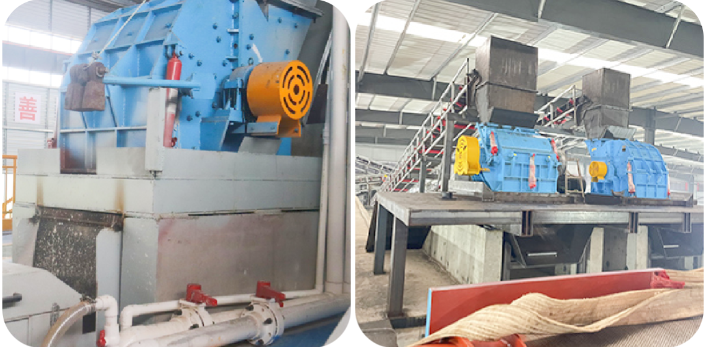

Stone Hammer Crusher can be used for sand making in slag treatment plants and sand and gravel plants.It can also be used to waste from crushing asbestos cement to recycle asbestos fibers, etc.

Working Principle of the Industrial Stone Hammer Crusher

Its crushing principle is to use a high-speed rotating hammer to break the material into smaller particles, thereby achieving the goal of crushing. The equipment is mainly used for crushing sand and gravel.

The rotor is driven by an electric motor, and it drives the hammer head on the rotor to rotate at a high speed. After entering the crushing chamber, the material is crushed by high-speed impact, strike, and shear from the hammer head. The finished material is discharged out of the machine through the sieve bar at the lower end of the machine, and the discharge particle size can be adjusted by adjusting the gap between the sieve bars.

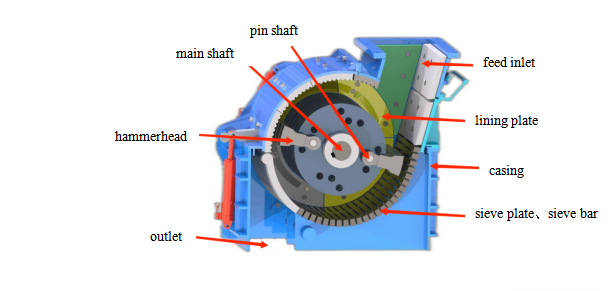

Industrial Stone Hammer Crusher Structure Diagram

The hammer crusher is generally composed of a power unit, a transmission device, a bearing part, a rotor part, a casing, and wear-resistant parts.
