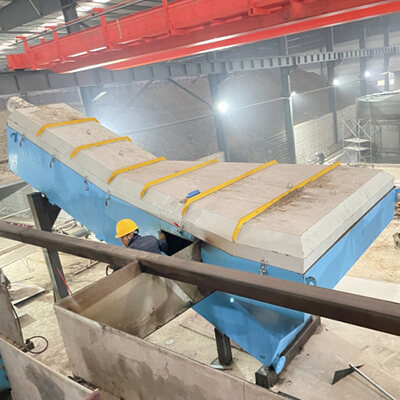

Double Shaft Spiral Sand Washing Equipment is suitable for washing, grading, impurity removal and other operations in Incineration bottom ash,sand and other industries.
1.Screw Sand Washing machinery has reasonable structure, convenient maintenance.
2.large processing capacity, low power consumption and high cleaning degree.
3.The sealing structure is good, and the transmission device is fully enclosed.
4.The working efficiency is 50% higher than that of the traditional sand making machine.

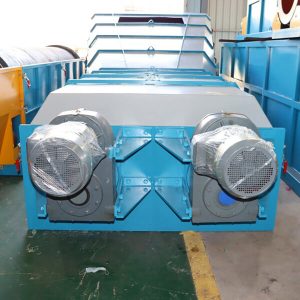

Double Shaft Spiral Sand Washing Equipment. Compared with the single-spiral sand washing machine, the processing efficiency and processing capacity of the double-spiral sand washing machine have been improved to a certain extent.
The transmission section is isolated from water and sand, so its failure rate is much lower than that of current common sand washing machines, making it an option for upgrading and upgrading the domestic sand washing industry.
Working Principle of the Double Shaft Spiral Sand Washing Equipment

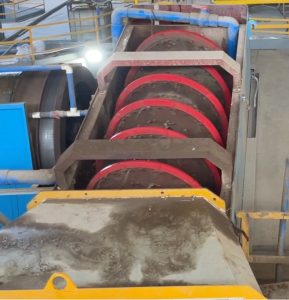

When the Double Shaft Spiral Sand Washing Equipment is working, the spiral blade starts to rotate under the action of the electric motor, and the sand and gravel enter the cleaning tank from the feed trough.
Rolls under the drive of the spiral blade, and grinds against each other to remove impurities that cover the sand surface and destroy the water vapor layer that covers the sand to facilitate dehydration; The sand and gravel are driven by spiral, moving from low to high, and the clean sand and gravel rotate into the discharge tank, completing the cleaning effect of the sand and gravel.
| Model | Spiral Diameter (mm) | Processing Capacity (t/h) |
Power（kw） | Dimensions (L*W*H)(mm) | Weight（kg） |
| GRLXS-0750 | 500 | 10-30 | 7.5 | 5960*1600*1370 | 1800 |
| GRLXS-7565 | 750 | 15-50 | 11 | 7748*2800*2157 | 3900 |
| GRLXS-1057 | 915 | 20-80 | 15 | 7680*2800*2310 | 4500 |
| GRLXS-2057 | 915 | 40-160 | 15 | 7770*2800*2310 | 7200 |
| GRLXS-1257 | 1115 | 40-120 | 18.5 | 7910*2800*2480 | 5300 |

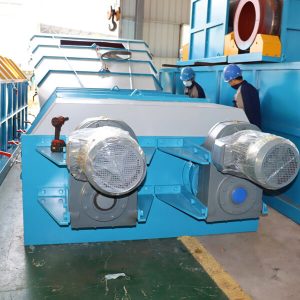

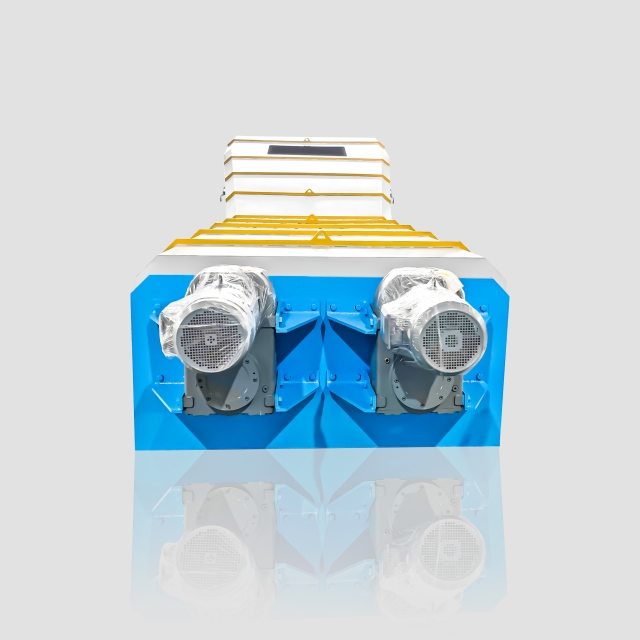

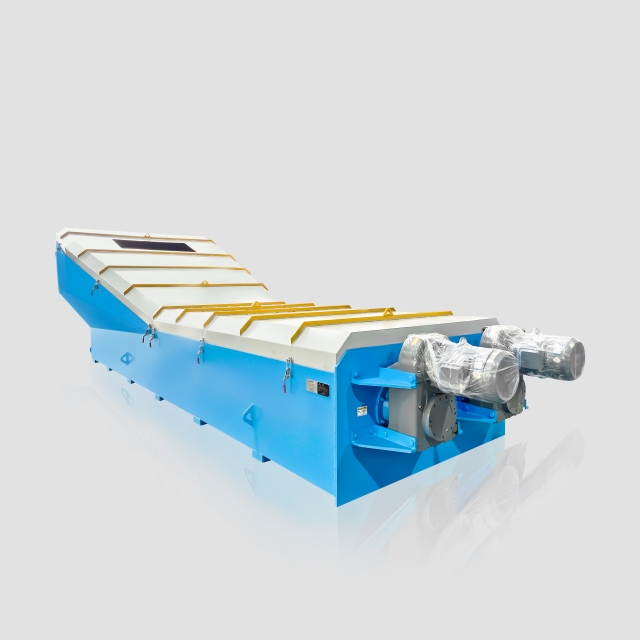

| 2LXS-915 | 915 | 100-160 | 2*11 | 8100*3000*2350 | 15600 |
Our Double Shaft Spiral Sand Washing Machine provides powerful cleaning to ensure improved sand and gravel quality. Get a free quote today and enjoy efficient cleaning solutions to help you increase your productivity
Double Shaft Spiral Sand Washing Machine is suitable for washing, grading and impurity removal in Incineration bottom ash, building materials, Sand and gravel aggregates and other industries.

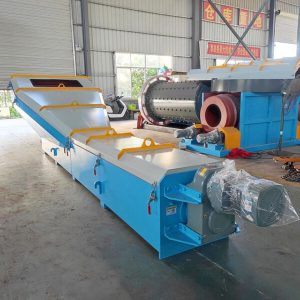

The Sand Screw Washer can be used to wash fine and coarse-grained materials, and is suitable for construction sand and road construction.
| Fault Condition | Fault Cause |
Exclusion Measure |
|
Not Running Smoothly |
Damage to the propeller shaft bearing or tail shaft roller | replacement |
| The spiral spindle is bent | Straighten or replace the spindle | |
| Straighten or replace the spindle | Replace the polyurethane rubber plate |
