Central Shaft Trommel Screen for Municipal Solid Waste.It is mainly used for the treatment and resource utilization of solid waste. China Manufacturer.

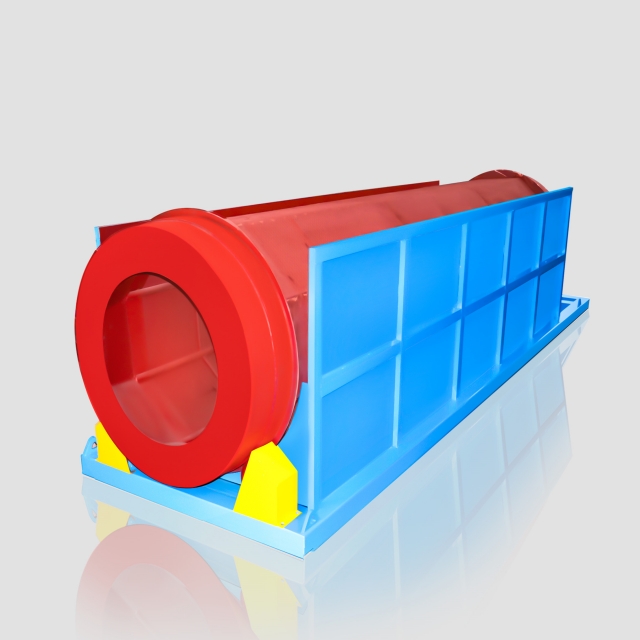

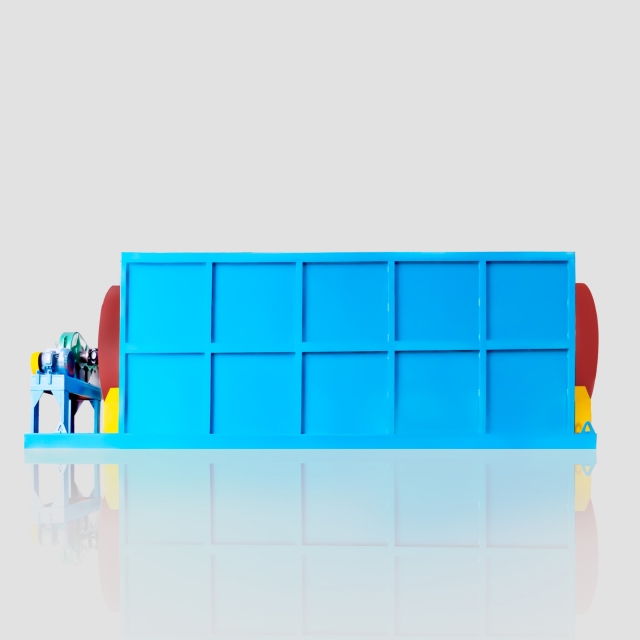

Wholesale Trommel Screen Machine GTS0612

Central Shaft Trommel Screen for Municipal Solid Waste

Central Shaft Trommel Screen for Municipal Solid Waste.It is mainly used for the treatment and resource utilization of solid waste.

1.The sealing isolation cover is sealed, which completely removes the phenomenon of dust flying and block separation in the process of screening cycle, and avoids the pollution of the working environment.

2.The equipment sealing isolation cover can be disassembled, which does not affect the normal operation of the machine after disassembly, and makes the maintenance very convenient.

3.The equipment screen is composed of annular flat steel, and its cross-sectional area is larger than that of the screen of other separating equipment, so as to improve the service life.

Get A Free Quote

Central Shaft Trommel Screen Machine Description

Central Shaft Trommel Screen Machine is mainly used for the treatment and resource utilization of solid waste.Through the screening of solid waste, the materials with different particle sizes can be separated, such as sorting different components such as paper, plastic, and glass in domestic waste.

In addition,drum screening machines are also suitable for scrap metal, as well as screening work in mining, building materials，Incineration bottom ash (IBA) sorting and other industries.

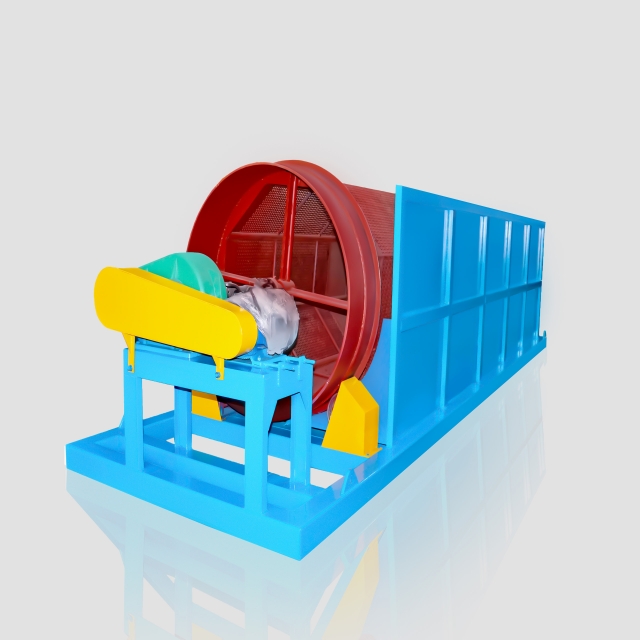

Structure of Central Shaft Rotary Drum Screening Machine

The structure of a Central Shaft Rotary Drum Screening Machine is relatively simple, usually consisting of a long shaft and a plurality of screens sleeved on the shaft. The material and porosity of the screen can also be selected according to the requirements. The screen of the shafted trommel screen is fixed on the shaft by the shaft rod, and the screen rotates with the rotation of the shaft during work.

Working Principle of the Central Shaft Trommel Screening Machine

The working principle of the central shaft trommel screening machine is to put garbage into the feeding hopper and send it into the screening drum through the conveying device. Inside the screening drum, garbage is constantly impacted and rubbed as it rotates, causing different sizes of garbage to separate. Small pieces of screened waste fall from the sieve holes, and large pieces of waste are discharged through the discharge port, completing the classification and screening of waste.

Central Shaft Trommel Drum Screen Parameter

Model	Power (kw)	Cylinder Rotation Speed (r/min	Maximum Feed particle size (mm)	Processing Capacity (t/h)	Weight (kg)	Dimensions (mm)
GTS0612	1.5	23	Mesh Size×2.5	20-10	600	2150×820×823
GTS1245	7.5	20	Mesh Size×2.5	20-50	2500	6328×1750×1700
GTS1360	11	20	Mesh Size×2.5	25-60	3800	7828×1800×1784
GTS1378	11	20	Mesh Size×2.5	30-70	4500	9628×1800×1784
GTS1560	15	19	Mesh Size×2.5	40-80	4180	8160×2000×2000
GTS1578	15	19	Mesh Size×2.5	50-90	5280	9760×2000×2000

Get Free Quote of Central Shaft Trommel Screen for Municipal Solid Waste

Choose our shaft trommel screen, designed specifically for municipal solid waste treatment, to provide an efficient and reliable screening solution. Request an inquiry now for a free quote and learn how you can optimize your waste disposal process with our equipment!

Get A Free Quote Now

Products Categories

Magnetic Separation Machine

Eddy Current Separator

Wet Drum Magnetic Separators

Up-suction Magnetic Drum Separators

Electromagnetic Overband Separator

Permanent Magnetic Separator

Gravity Sorting Machine

Jig Concentrator

Crushing Machine

Iron Hammer Crushing Machine

Hammer Stone Crusher

Copper Hammer Crushing Machine

Screening Machine

Vibrating Dewatering Screens

Trommel Screen Machine

Conveying Machine

Bucket Wheel Sand Washer

Screw Sand Washing Machine

Screw Conveyor

Reciprocating Plate Feeder

Get A Free Quote

Cost-effective Size Classified Trommel Screen Video

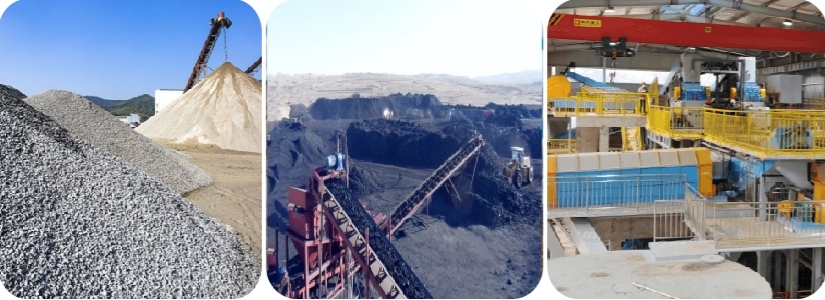

Shafted Heavy Duty Trommel Screen Applications

As an efficient and practical screening equipment, the Shafted Trommel Screen Machine has a wide range of applications in many fields.It mainly screens materials through rotating rollers and internal screens, which has the advantages of simple structure, convenient operation and high screening efficiency.

1.Mineral Industry: In the mining field, the trommel screen is mainly used in the ore screening treatment. By screening the raw ore, the ore of different particle size can be separated to meet the requirements of subsequent processing or transportation.

2. Building Trades: In the construction industry, the Shaft Rotary Trommel Screen is mainly used for the classification and screening of construction waste. Through screening, different components of construction waste can be separated, such as concrete blocks, masonry, tiles, wood, etc., so as to realize the reuse of resources. In addition, the equipment can also be used to screen sand, stone and other building materials to meet the needs of building construction.

3. Environmental Protection Field: In the field of environmental protection, Shafted trommel screen for Recycling of Solid Waste.They are mainly used for the treatment and resource utilization of solid waste. Through the screening of solid waste, the materials with different particle sizes can be separated, such as the classification of different components such as paper, plastic, glass and other components in domestic waste, and the separation of metal, non-metal and other materials in industrial solid waste. This helps to reduce the amount of waste and resource utilization, and reduce environmental pollution.

4.IBA Sorting Plant:GTS trommel screen equipment can realize the fine screening of solid waste slag of incineration bottom ash (IBA), improve the efficiency of waste disposal, and can recover valuable resources for reuse.

Sand and Rock Separation Cinder Separation Incineration bottom ash separation

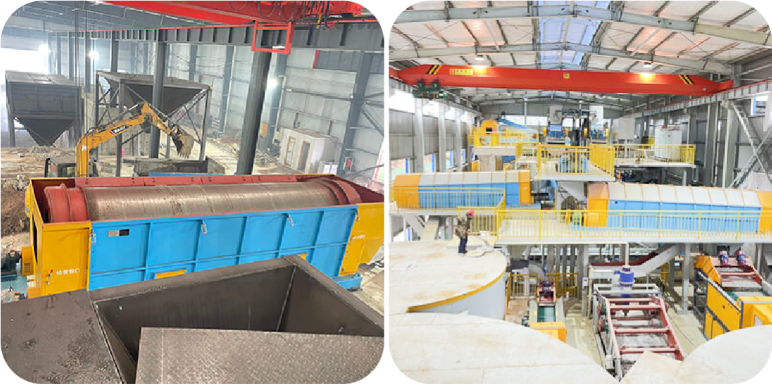

Central Shaft Trommel Screen Machine Customer Installation Site

The following is the trommel screen installation site of the incineration bottom ash (IBA) sorting plant.In slag plants, the use of trommel screens can greatly improve the efficiency of waste disposal, while also recovering valuable resources.

Through fine screening, different components in the slag can be separated and used to make building materials, roadbed and other materials, so as to realize the resource utilization of waste.

The sealing isolation cover of our shafted trommel screen is sealed, so that in the work, the phenomenon of dust flying and block separation in the process of screening cycle can be completely eliminated, and the pollution of the working environment can be avoided.

FAQs

1. How to choose the appropriate product model?

In order to recommend the most suitable model, please provide us with information about the material, including its composition, size, processing capacity (per hour), and expected separation results.

2. How long is the production cycle of the equipment?

Different products have different production cycles, about 15-40 days.

3. How long is the warranty period of the equipment?

The warranty period is 1 year, calculated from the date the equipment arrives at the buyer’s site; Consumables, vulnerable parts, and damage caused by improper operation are not covered by the warranty.

4. Which payment terms are available to us?

We accept T/T terms or L/C terms. A 50% down payment is reguired in advance, and the 50% balance shall be setled before shipment；Under L/C terms, a 100% irrevocable L/C without ‘soft clauses’ can be accepted.

5. Does it support test machine with incoming materials?

Yes, of course. You can bring the materials to the factory for testing in person, or you can mail the materials. We will test the materials according to your needs and provide you with the data information and on-site video after testing.

6. Does it support inspection before shipment?

Yes, it is possible. You can come to the factory for inspection or have a third-party inspection.
